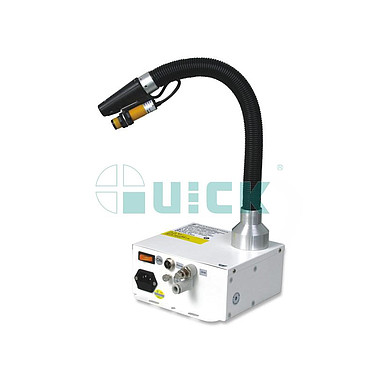

QUICK QUICK 4456EF Intelligent Static Elimination Equipment (Ion)

Air supply requirements: Clean dry air 0.1 to 0.7 Mpa

Air supply connection: Connected with a 6 * 8 mm PU tube

High voltage output: 7 KVAC 0 - 40% 50 Hz

Effective static elimination distance: Within 1000 mm

Features:

1. The ion balance is stable and externally adjusted, which is simple and convenient.

2. The ion balance value can reach ±10V, which can quickly eliminate static electricity on charged objects.

3. Built-in silencer system, low noise, high voltage using capacitive coupling, safe and reliable.

4. The photoelectric switch or foot switch controls both the air supply and the high pressure.

5. The 4456 EF features an integrated design that saves space while eliminating lengthy high voltage lines.
