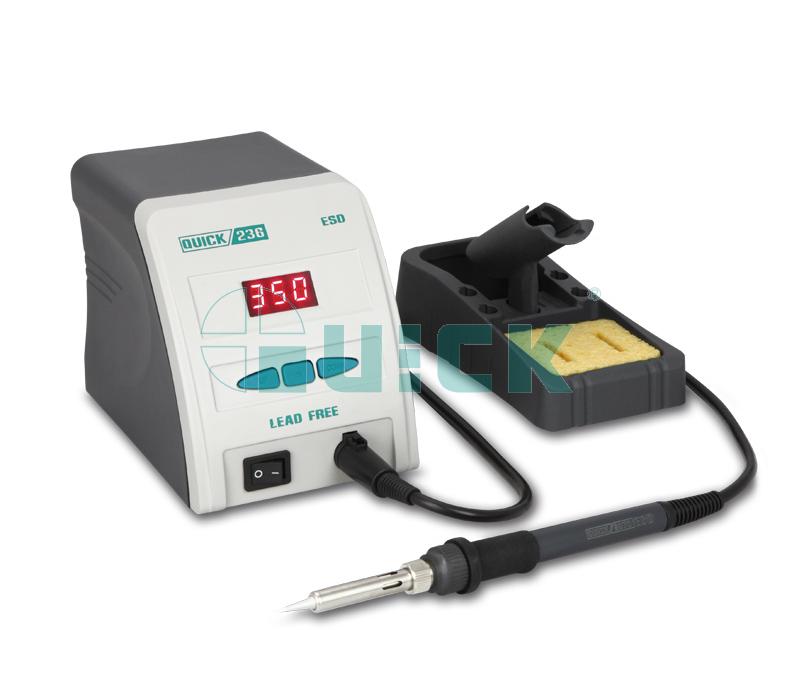

QUICK QUICK 236 Soldering Station

Manufacturer: QUICK

Model: 236

Origin: China

Warranty: 12 months

power: 90W

Voltage: AC 220V

temperature range: 80 ° C ~ 480 ° C

Temperature stability: ±2 ° C (still air without load)

Tip to ground resistance: <2Ω

Tip to ground potential: <2 mV

Dimensions: 160(L) X 105(W) X 125(H)mm

weight: About 2.3 kg

Handle model: 907D

Features:

1. Microcomputer digital display, PID temperature control, temperature rise and temperature recovery speed, truly lead-free soldering.

2. It adopts ceramic high temperature heating core and has long service life.

3. It can be used with a variety of long-life universal soldering iron tips for easy use.

4. It adopts digital temperature calibration for easy operation.

5. The welding handle is light and comfortable to use.

6. The appearance is novel and the structure is firm.
