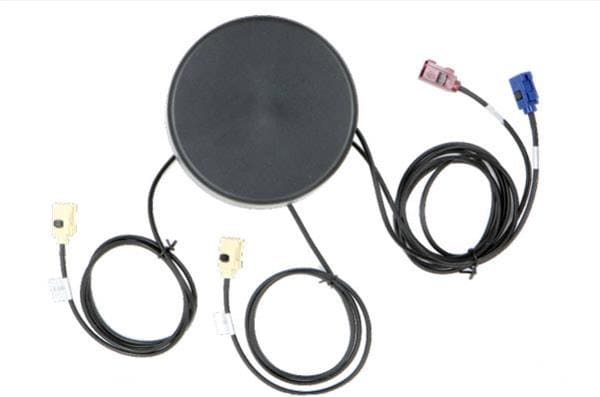

Quectel YB0026AA Combo Antenna External, LTE: 700-2700 MHz; Wi-Fi: 2400-5850 MHz;GNSS: 1561 MHz/1575.42 MHz/1602 MHz, LTE&GNSS&Wi-Fi1&Wi-Fi2, Combining, 1.5DSL=1000, GNSS:FAKRA_CLTE:FAKRA_DWi-Fi1:FAKRA_IWi-Fi2:FAKRA_I, Screw, F 120 43
ManufacturerQuectel(View more products from this manufacturer)
ModelYB0026AA
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 2 dBi, 20 dBi
VSWR: 2, 4
Frequency: 700 MHz to 2.7 GHz, 2.4 GHz to 5.85 GHz
IP Rating: IP67
Impedance: 50 Ohms
Application: Cellular LTE/Wi-Fi/GNSS
Cable Length: 1 m
Polarization: Circular, Linear
Mounting Style: Screw Mount
Frequency Range: 700 MHz to 2.7 GHz, 2.4 GHz to 5.85 GHz
Number of Bands: 4 Band
Maximum Frequency: 5.85 GHz
Minimum Frequency: 700 MHz
Antenna Connector Type: FAKRA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
