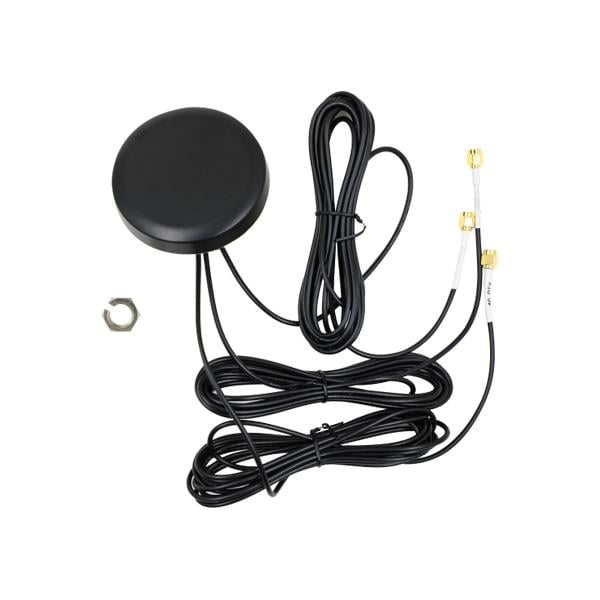

Quectel YB0014AA MIMO External Antenna, Low Profile, 3in1, Screw mount, F8114.5mm, Combo, 4G*2+GNSS L1*1,3000mm, RG174, SMA Male, LNA Gain 22 +/-3dB, IP66, RoHS Compliant

Gain: 3 dBi, 4 dBi, 28 dBi

VSWR: 4

Style: Dome

Length: 14.5 mm

Diameter: 81 mm

IP Rating: IP66

Impedance: 50 Ohms

Cable Type: 3 M RG174 x 3

Application: Cellular Radio, Wireless Applications

Polarization: Linear, RHCP

Mounting Style: Adhesive Mount

Number of Bands: 3 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 1575 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
