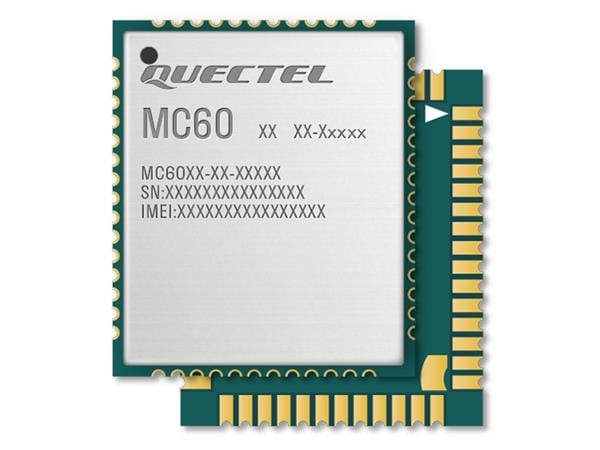

Quectel MC60ECB-04-BLE Bluetooth, GSM/GPRS, GNSS GSM/GPRS/GNSS, Quad-band, Supports BT3.0 & BT4.0, Ultra-small, LCC form factor
ManufacturerQuectel(View more products from this manufacturer)
ModelMC60ECB-04-BLE
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Data Rate: 85.6 kb/s
Frequency: 1.561 GHz, 1.575 GHz, 1.602 GHz
Dimensions: 18.7 mm x 16 mm x 2.1 mm
Output Power: 2 W
Interface Type: Audio, Bluetooth, PCM, SD Card, UART
Moisture Sensitive: Yes
Supply Voltage - Max: 4.6 V
Supply Voltage - Min: 3.3 V
Acquisition Sensitivity: - 149 dBm
Protocol - GPS, GLONASS: GNSS
Supply Current Receiving: 1.2 mA
Maximum Operating Temperature: + 75 C
Minimum Operating Temperature: - 35 C
Protocol - Cellular, NBIoT, LTE: GSM/GPRS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 3.0
