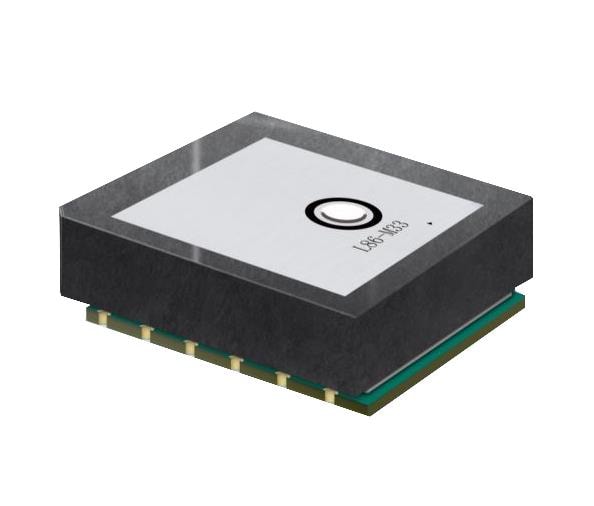

Quectel L86-M33 GPS Modules Single band, 3 GNSS, w/ LNA, integrated 18x18mm antenna (Airoha 3333)
ManufacturerQuectel(View more products from this manufacturer)
ModelL86-M33
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 1.57542 GHz, 1.60171 GHz
Dimensions: 18.4 mm x 18.4 mm x 6.45 mm
Unit Weight: 7.620 g
Interface Type: UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Supply Voltage - Max: 4.3 V
Supply Voltage - Min: 3 V
Acquisition Sensitivity: - 149 dBm
Protocol - GPS, GLONASS: GNSS
Operating Supply Voltage: 3 V to 4.3 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Time To First Fix - Cold Start: 35 s
