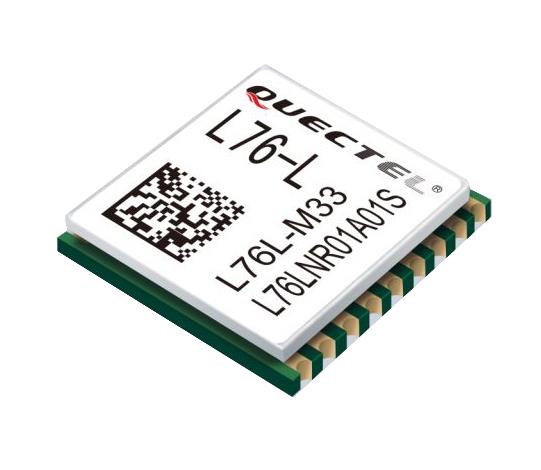

Quectel L76L-M33 GPS Modules Single band, 3 GNSS, w/ LNA (Airoha 3333)
ManufacturerQuectel(View more products from this manufacturer)
ModelL76L-M33
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 1.57542 GHz, 1.60171 GHz
Dimensions: 10.1 mm x 9.7 mm x 2.5 mm
Unit Weight: 500 mg
Interface Type: I2C, UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Supply Voltage - Max: 4.3 V
Supply Voltage - Min: 2.8 V
Acquisition Sensitivity: - 149 dBm
Protocol - GPS, GLONASS: GNSS
Operating Supply Voltage: 2.8 V to 4.3 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Time To First Fix - Cold Start: 35 s
