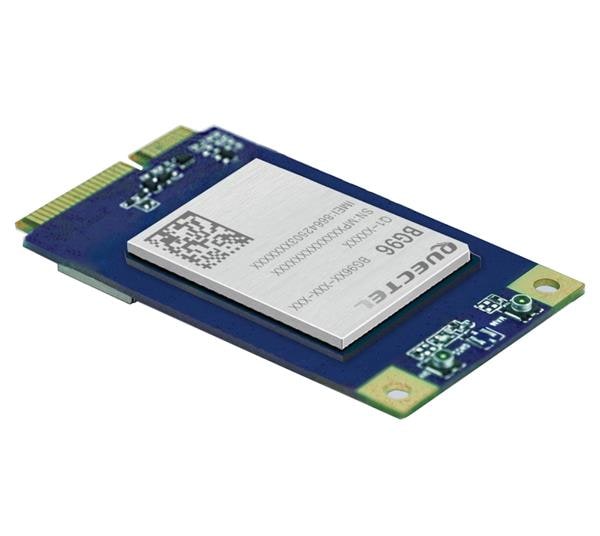

Quectel BG96MC-MINIPCIE LTE Module Cat M1/Cat NB2, mPCIe form factor

Data Rate: 375 kb/s

Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Dimensions: 51 mm x 30 mm x 4.9 mm

Unit Weight: 10.580 g

Output Power: 23 dBm

Interface Type: I2C, PCIe, PCM, UART, USB 2.0

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Protocol - GPS, GLONASS: GNSS

Supply Current Transmitting: 479 mA

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: EGPRS, LTE Cat-M1, LTE Cat NB1
