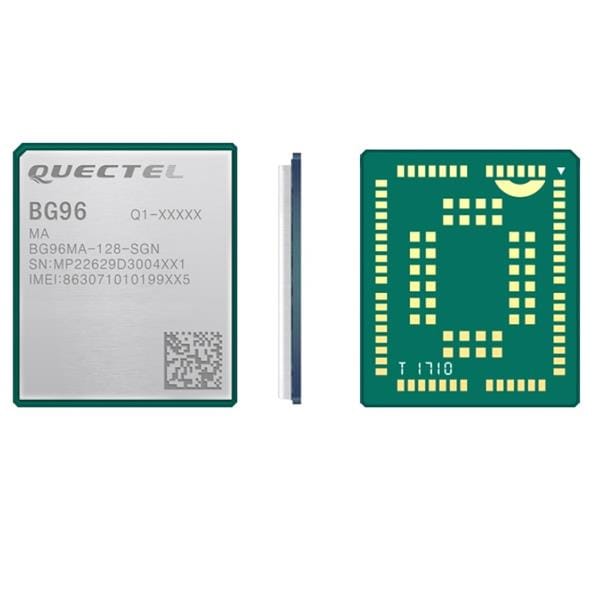

Quectel BG96MATEA-128-SGN LTE Module Embedded, 698-960,1710-3800, LTE (4G), PCB, -, -, SMD, 26 x 8 x 3

Data Rate: 375 kb/s

Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Dimensions: 26.5 mm x 22.5 mm x 2.3 mm

Unit Weight: 4 g

Output Power: 23 dBm

Interface Type: ADC, GPIO, PCM, UART, USB 2.0

Mounting Style: SMD/SMT

Supply Voltage - Max: 4.3 V

Supply Voltage - Min: 3.3 V

Protocol - GPS, GLONASS: GNSS

Supply Current Transmitting: 223 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: EGPRS, LTE Cat-M1, LTE Cat NB1
