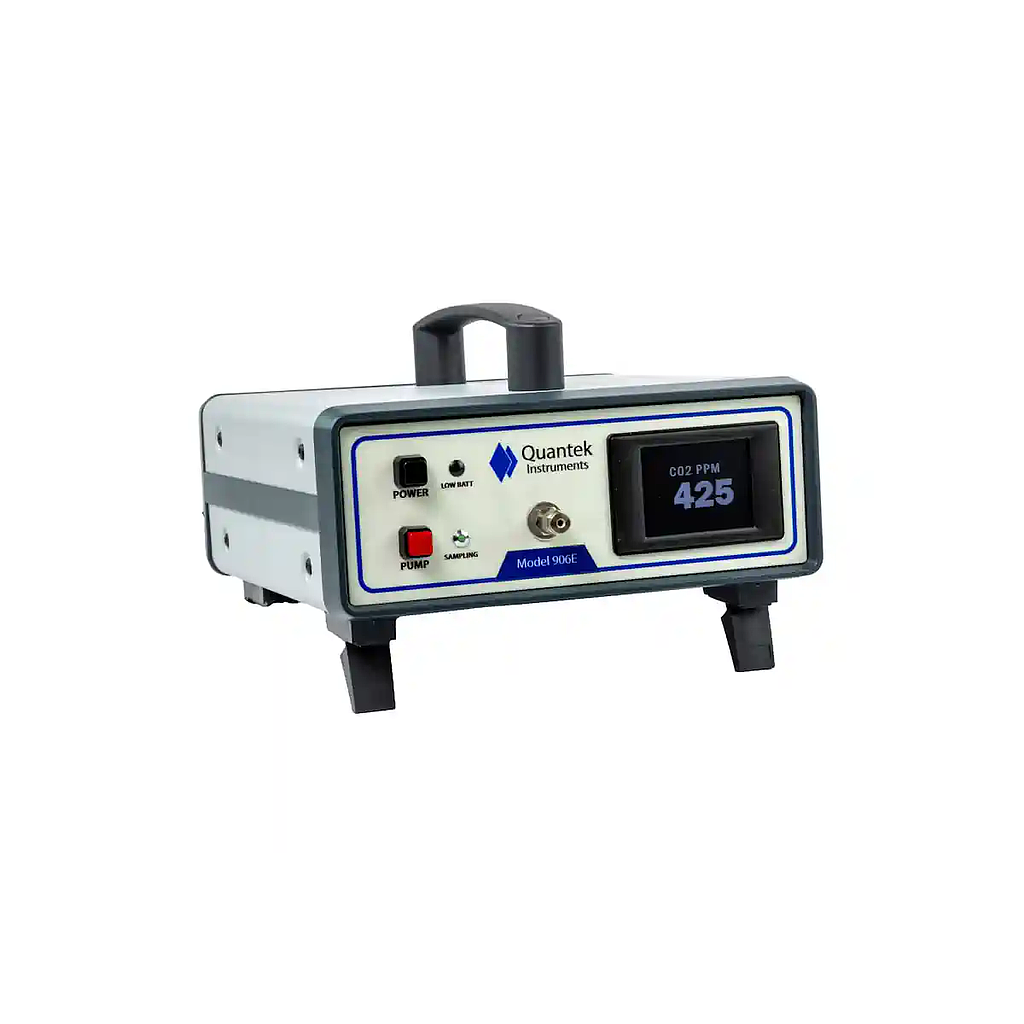

QUANTEK INSTRUMENTS 906E High Accuracy ppm CO2 Analyzer for Process & Research

Carbon Dioxide Sensor Type: Solid-state Infrared

Accuracy - Carbon Dioxide: 906E

CO2 Minimum Detection Limit: 1ppm

CO2 Calibration Controls: Potentiometer SPAN adjustment for CO2.

CO2 Calibration Frequency: Every 12 months; calibration gas recommended.

Analog Output: 0 to 1Vdc, 0-5Vdc, 0-10 Vdc, or 4-20mA, linear, proportional to CO2 concentration

Resolution: 1ppm

Accuracy: 906E Acc

Oxygen Sensor Type: Infrared (NDIR); non-depleting with no moving parts

Response Time: 20 seconds to T95

O2 Sensor Lifetime: Theoretically unlimited (average 8 years)

Sample Connection: Front panel fitting with luer connection for disposable filter, plastic splitter; 1/16 to 1/8 ID tubing; (optional) Swaglok inlet

Sample Method: Pump (Optional)

Sample Pump: Optional; internal, with on-off switch on front panel, draws about 5 cc/sec

Pump Timing: (Optional) 2-mode pump switch (timed, or continuous); (optional) cycling pump with on/off timer

Minimum Sample Required: 15cc

Sampling Assembly: Inlet fitting

Instrument Calibration: With standard calibration gas (available from Quantek if needed); SPAN adjustment on rear panel ZERO potentiometer located on rear panel

Exhaust port: Vents to air (optional connectible exhaust for capturing exhaust)

Power Supply: Internationally compatible charger or power supply, 100/240V (50/60Hz) to 12V

Backup Power: Optional 12V internal battery pack

Battery Operation: Optional, with internal rechargeable 12 Vdc battery

Input Voltage: 100-240V, 50-60Hz

Battery Life: 8-12 hours before recharging

Measures: O2, CO2: CO2

Form Factor: Benchtop

Size: 10 in. x 4 in. x 10.5 in. (25.4 cm x 10.6 cm x 26.67 cm)

Weight: 7 lbs. (3.18 kg)

Standards: CE, RoHS

Included Consumables: Plastic syringes for sample collection, 5 spare internal moisture blocking filters

Options: Internal pump, cycling-enabled pump, 0-5Vdc analog output, internal relay/control board to activate external audible alarm, buzzer, or contact closure.

Included Documentation: Owners manual (includes operating instructions with detailed calibration instructions, calibration certficate, precautions), NIST calibration certificate

Origin of Goods: Our goods are manufactured in the U.S.A.

Products by Gas: CO2

Products by Applications: Gas Flow / Process Analyzers

Datasheet
