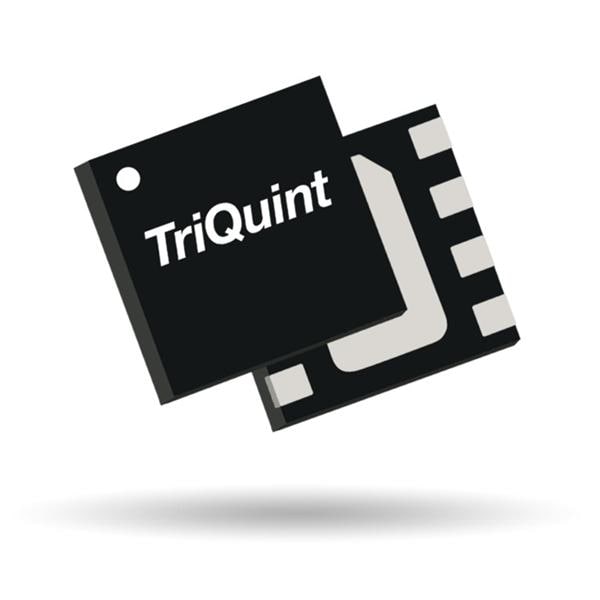

Qorvo TQL9047 Gain Block Amplifiers 50-4000MHz NF 1.6dB Gain 14.5dB

Gain: 14.5 dB

Technology: GaAs

Unit Weight: 286.365 mg

Mounting Style: SMD/SMT

Test Frequency: 1.9 GHz

Input Return Loss: 11 dB

NF - Noise Figure: 1.6 dB

Operating Frequency: 50 MHz to 4 GHz

Supply Voltage - Max: 7 V

Supply Voltage - Min: 3 V

Operating Supply Current: 70 mA

Operating Supply Voltage: 5 V

P1dB - Compression Point: 20.8 dBm

OIP3 - Third Order Intercept: 35.5 dBm

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
