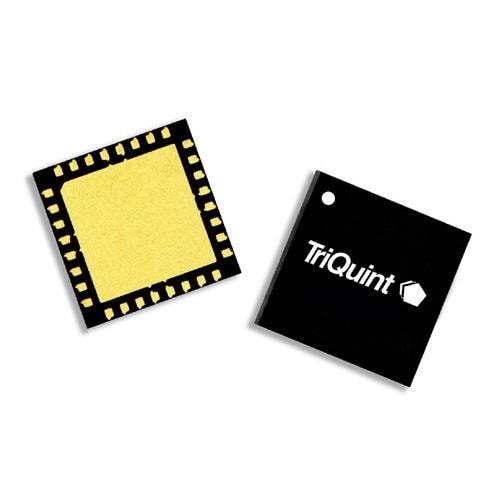

Qorvo TQC9311 Variable Gain Amplifiers .4-3.6GHz NF 3.8dB P1dB 21.1dBm

Gain: 13.2 dB

Technology: Si

Unit Weight: 188.600 mg

Isolation dB: 55 dB

Mounting Style: SMD/SMT

Test Frequency: 1.95 GHz

Input Return Loss: 13 dB

NF - Noise Figure: 3.8 dB

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Operating Frequency: 400 MHz to 3.6 GHz

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Operating Supply Current: 87 mA

Operating Supply Voltage: 5 V

P1dB - Compression Point: 21.1 dBm

OIP3 - Third Order Intercept: 36.5 dBm

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
