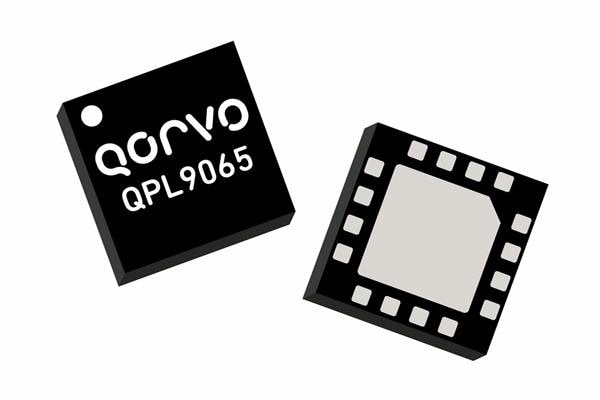

Qorvo QPL9065TR13 Low Noise Amplifiers .45-3.8GHz NF .55dB Gain 37.5dB

Gain: 37.5 dB

Technology: Si

Mounting Style: SMD/SMT

Test Frequency: 1.95 GHz

Development Kit: QPL9065PCB401

Input Return Loss: 12.5 dB

NF - Noise Figure: 0.55 dB

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Operating Frequency: 450 MHz to 3.8 GHz

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 3.3 V

Operating Supply Current: 160 mA

Operating Supply Voltage: 3.3 V to 5.25 V

P1dB - Compression Point: 20.8 dBm

OIP3 - Third Order Intercept: 36 dBm

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
