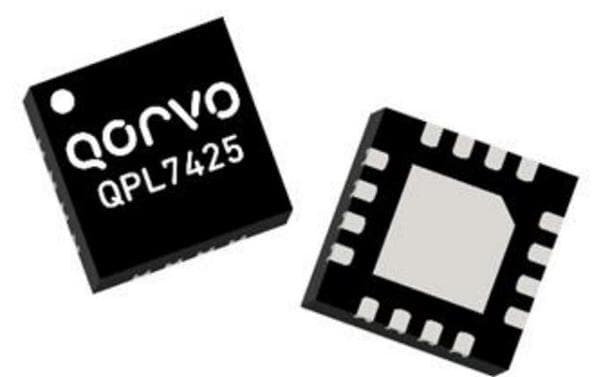

Qorvo QPL7425SR CATV Amplifiers 5MHz to 1.2GHz, LNA - 25dB Gain, 3x3 QFN

Gain: 25 dB

Technology: GaAs

Amplifier Type: RF Amplifier

Mounting Style: SMD/SMT

Development Kit: QPL7425EVB-01, QPL7425EVB-02

Frequency Range: 47 MHz to 1.218 GHz

Input Return Loss: 21 dB

NF - Noise Figure: 1 dB

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Operating Frequency: 47 MHz to 1.218 GHz

Supply Voltage - Max: 8 V

Supply Voltage - Min: 5 V

Operating Supply Current: 90 mA

Operating Supply Voltage: 5 V, 8 V

P1dB - Compression Point: 24 dBm

OIP3 - Third Order Intercept: 40 dBm

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
