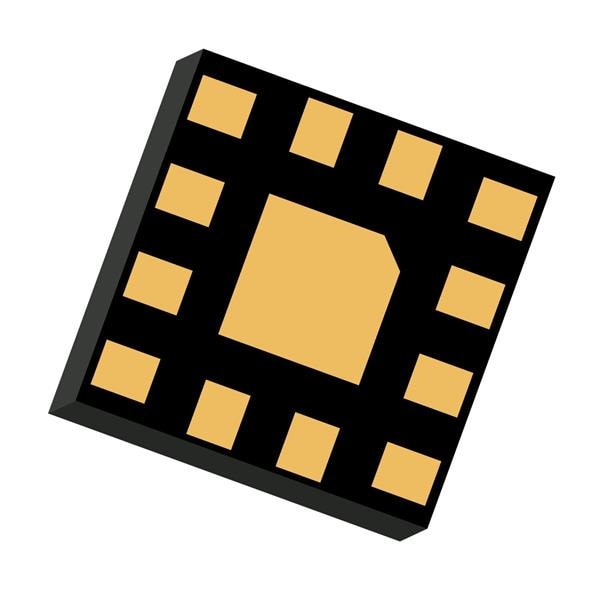

Qorvo QPA9143TR7 Gain Block Amplifiers 2.3-3.8 GHz Tx GAIN BLOCK

Gain: 18 dB

Technology: Si

Mounting Style: SMD/SMT

Test Frequency: 2.6 GHz

Development Kit: QPA9143EVB-01

Input Return Loss: 8.5 dB

NF - Noise Figure: 1.9 dB

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Operating Frequency: 2.3 GHz to 3.8 GHz

Pd - Power Dissipation: 700 mW

Operating Supply Current: 70 mA

Operating Supply Voltage: 5 V

P1dB - Compression Point: 19.5 dBm

OIP3 - Third Order Intercept: 35 dBm

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
