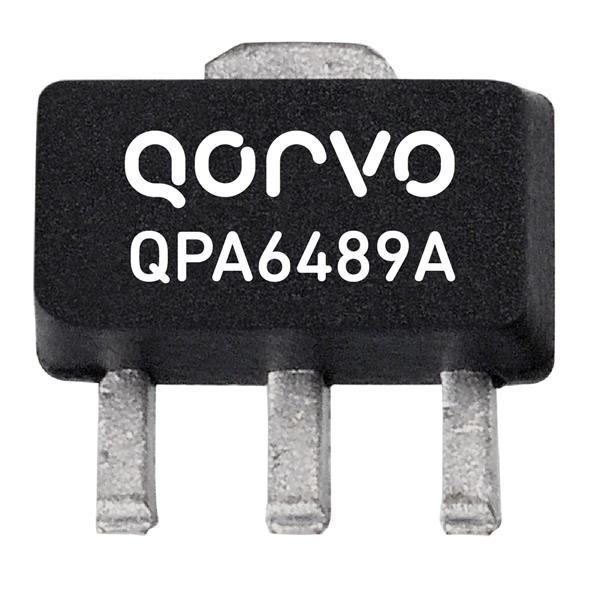

Qorvo QPA6489ATR13 Gain Block Amplifiers DC-3500MHz NF3.4dB P1dB 19.4dBm
ManufacturerQorvo(View more products from this manufacturer)
ModelQPA6489ATR13
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 18.5 dB
Technology: SiGe
Unit Weight: 233.750 mg
Isolation dB: 24.8 dB
Mounting Style: SMD/SMT
Test Frequency: 2.4 GHz
Development Kit: QPA6489APCK401
Input Return Loss: 14.7 dB
NF - Noise Figure: 3.7 dB
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Operating Frequency: 0 Hz to 3.5 GHz
Operating Supply Current: 75 mA
Operating Supply Voltage: 5.1 V
P1dB - Compression Point: 18.4 dBm
OIP3 - Third Order Intercept: 30.4 dBm
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
