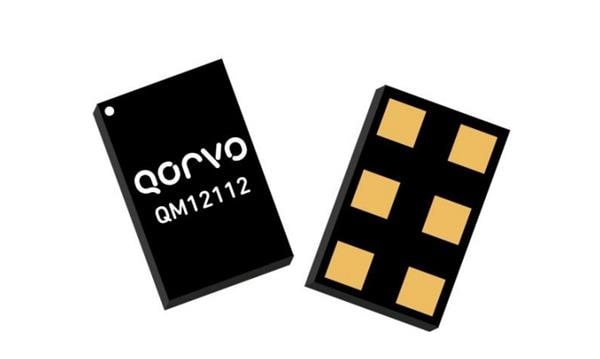

Qorvo QM12112TR13-10K RF Switch ICs GPIO GSM Switch
ManufacturerQorvo(View more products from this manufacturer)
ModelQM12112TR13-10K
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Insertion Loss: 1 dB
Mounting Style: SMD/SMT
Development Kit: QM12112EVB
Maximum Frequency: 8.24 GHz
Minimum Frequency: 617 MHz
Operating Frequency: 617 MHz to 8.24 GHz
Supply Voltage - Max: 3.1 V
Supply Voltage - Min: 1.62 V
Switch Configuration: SPDT
Operating Supply Current: 38 uA
Maximum Operating Temperature: + 90 C
Minimum Operating Temperature: - 30 C
