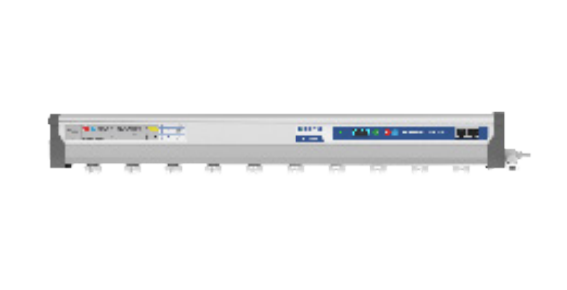

Qeepo QP-S35W Intelligent Static Eliminator (≤±30V, 300mm)

Structure:

Model: High balance

Needle Pitch: 50mm

Auxiliary Gas: yes

Buffer Structure: yes

The Discharge Electrode Can Be Replaced: yes

Texture Of Material:

Electrode Needle Material: Standard tungsten (titanium and silicon can be selected)

Body Material: SUS304/ABS/PC/PBT/PU/AL

Performance Parameter:

Ion Balance: ≤±30V

Electrostatic Removal Speed: 0.1S

Ion Balance Control Mode: SIS control system

Input Voltage: 20～36VDC

Voltage Operating Mode: Pulse AC

Rated Power: 24W

Rated Current: 1A

Frequency Setting: 10、20、50、60、100Hz

Working Distance: 50-1000mm

Recommended Installation Distance: 300mm

Size Of Gas Pipe Connector: Φ8mm

Connect The Sensor: yes

Working Pressure: 0.1Mpa-0.5Mpa

Control Display:

Ion Indication: yes

Status Indication: yes

Cleaning Reminder: yes

Abnormal Discharge Indication: yes

Ion Level Self Balance: yes

Frequency Regulation: yes

Adaptive Calibration: yes

Work Environment:

Operating Ambient Temperature: 0～50℃

Operating Ambient Humidity: 0~70% RH (no freezing, no condensation)

Safety Specification:

Ce Standard: CE

Application:

Application Area: Film industry, rubber industry, etc

Note: The Measurement Conditions For The Above Data Are: Temperature (23 ± 3) ℃; Humidity (50 ± 5)%, Test Voltage 1Kv-100V; Test Distance 50Mm; Test Instrument: 3M711
