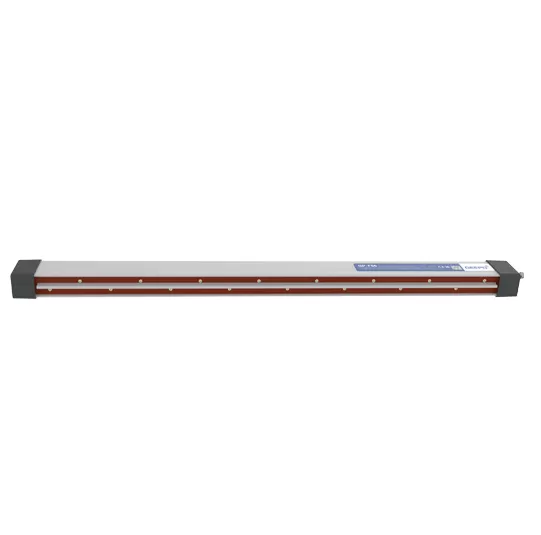

Qeepo QP-F66 Pulsed DC Static Eliminator

Input voltage: 24V DC （20-32V DC）

Input current: ≤1A

Working voltage: 9.5/12KV DC

Working frequency: 1~30Hz

Working temperature: 0℃~40℃

Texture of material: ABS/PVC FR.

Section size: 27.5*45.5mm

Discharge electrode material: W

Working distance: 50~300mm

Work proportion: 40%：60%（POS：NEG）

Working humidity: 0~70%RH

*The default frequency is 10Hz, which can be adjusted from 1 to 30Hz through a regulator.

*The default work ratio is 40%: 60% (POS: NEG), which can be adjusted from 10%: 90% to 90%: 10% through a regulator.
