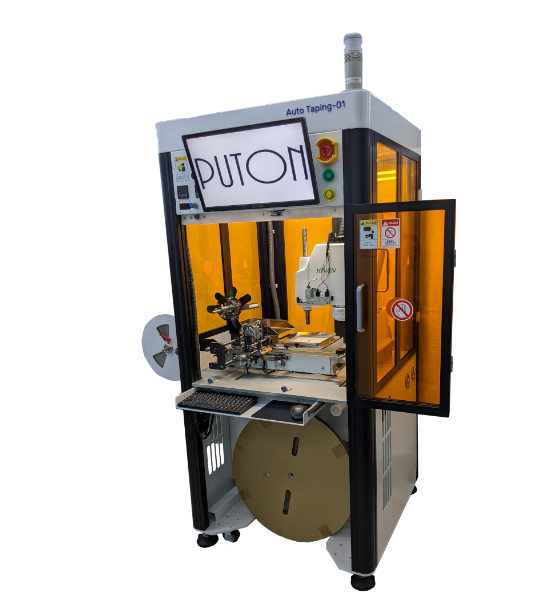

Puton BR-400 Automated taping machine (2~3s/1 time)

Main unit

Robot: 4-axis SCARA

Speed: 2~3s/1 time

Repeatability: ±0.02mm

Pick & place: Vacuum generator, metal nozzle, soft cup

Weight: 15g (MAX)

Security: Anti-static transparent acrylic safety door, three-color warning light, emergency stop switch

Dimension: 850W × 850D × 2,000H mm (Not included the taping machine)

Power: AC 200~245 Single-phase three-wire

Frequency: 50/60Hz

Air Input: 0.6Pa (6.0Kg/cm2)

Control system

OS: Windows 10

Display: 17”TFT LCD

Input: Keyboard/mouse

AOI

Resolution: 2 million pixels for 10-30mm components

5 million pixels for 5~30mm components

Lens: Large FOV, 200*250 mm

Small FOV, 70*80 mm

Input

AllFeeder: FPF-22S

Hopper: OTF-190

light source: Backlight

Output

Taping Machine: ATR-32, PSA & heat seal, tapes under 32m widths

ATR-108,PSA & heat seal, tapes under 108m widths

Feeding Machine: Up to 22 inches

Option

Input / output: Tube in

JEDEC Tray in/out

Tube out

Conveyor

Others: Ink marker

Character or image AOI

Barcode reader
