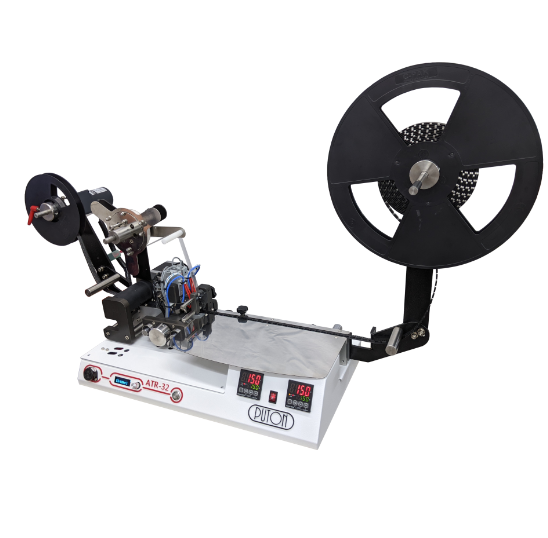

Puton ATR-32 Automated taping machine (90mm/s, 125mm/s)

Application: Automated integration and stand-alone

Seal form: Heat sealing and PSA

Carrier tape

Width: 8~32 mm

Plastic reel diameter: 200~550mm, 20''

Depth: 20 mm

Cover tape: 200 mm

Heat seal

Heat seal knife: Length: 61mm

width: 0.5mm

Temperature control: PID micro computer program control 30~300 ̊C

Control system

Controller: Embedded system, LCD display, control button

Package speed: Seal knife type 90mm/s *1

Continuous type 125mm/s *2

Host

Dimension: 800 x 270 x410mm

Work panel height:100mm

Weight: 32 kg

Operating environment

Power requirement: AC 110/220 ,50/60 Hz

Air pressure: 5.0 kg/cm2

Temperature: 15~40 ̊C

Humidity: 35~85%

https://youtu.be/UBYikCMOZw4

https://youtu.be/JRiy1Jx63nI

Datasheet
