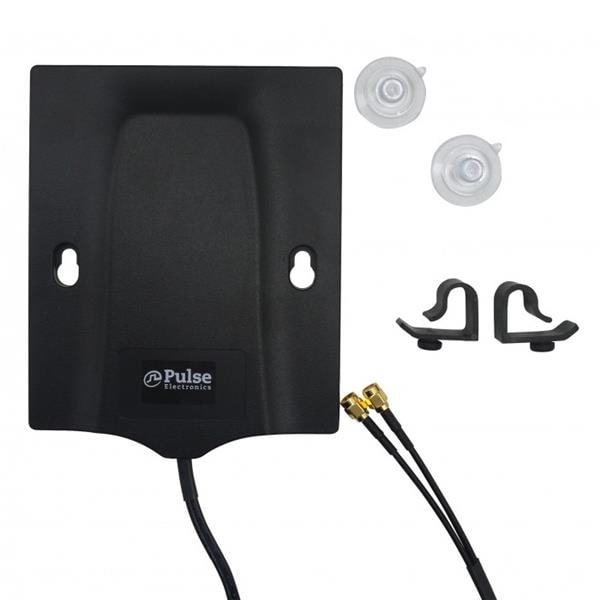

Pulse Electronics WA700/2700SMA MIMO Ant Ext 0.698-2.7 LTE SMA

Gain: 3.5 dB

VSWR: 2.5:1

Style: Square

Width: 127 mm

Height: 5.1 mm

Length: 149 mm

Impedance: 50 Ohms

Cable Type: 1 M RG174 x 2

Technology: Cellular, LTE, MiMo

Application: Laptop Connection, Access Points, Routers

Unit Weight: 317.520 g

Cable Length: 1000 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Clip

Number of Bands: 4 Band

Center Frequency: 750 MHz, 850 MHz, 868 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
