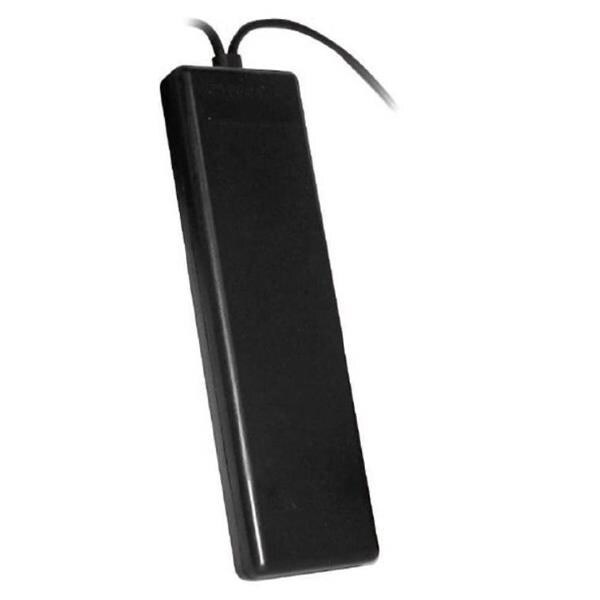

Pulse Electronics W4120GNSS5000 MIMO EXT 0.806-2.17GHz 3G Active GNSS Blade

Gain: 1.7 dBi, 2.9 dBi

VSWR: 2.5:1, 2:1

Style: I-Bar

Width: 37.7 mm

Height: 13.8 mm

Length: 136 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 5 M RG174 x 2

Application: Cellular Application, Satellite Tracking/Navigation, Asset Tracking, Fleet Management, Broadband Mobile/Fixed, Utility Boxes.

Unit Weight: 194 g

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 4 Band

Center Frequency: 868 MHz, 915 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 1561.098 MHz, 1575.42 MHz, 1602.5625 MHz

Mechanical Style: Module

Maximum Frequency: 2.17 GHz

Minimum Frequency: 806 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
