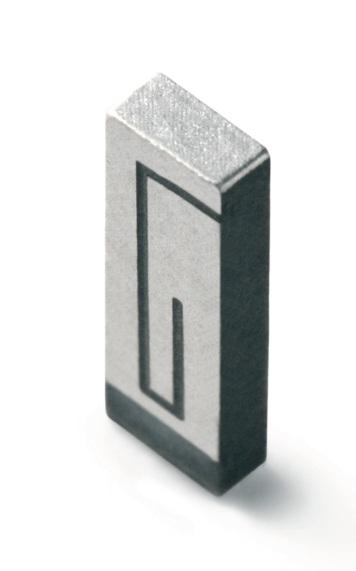

Pulse Electronics W3006 Passive Antenna Dual Band WLAN Ceramic Antenna

Gain: 3.2 dBi, 4.2 dBi

Style: Ceramic

Width: 3.2 mm

Height: 4 mm

Length: 10 mm

Impedance: 50 Ohms

Technology: WLAN Dual Band

Application: Wireless Applications, ISM Applications

Unit Weight: 240 mg

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Monopole

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz, 6.5 GHz

Mechanical Style: Chip

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM, U-NII

Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
