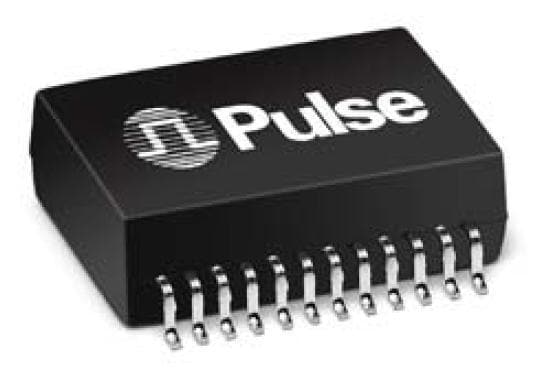

Pulse Electronics TX1193NL Module SMD T1/CEPT/ISDN-Pri 1200uH .8Ohms 2-Por
ModelTX1193NL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.20 mm
Height: 5.76 mm
Length: 17.53 mm
Shielding: Unshielded
Inductance: 1.2 mH
Application: T1/E1/CEPT/ISDN-Pri Interface
Unit Weight: 4 g
REACH - SVHC: Details
Isolation Voltage: 1.5 kV
Primary Impedance: 1 Ohms
Termination Style: SMD/SMT
Moisture Sensitive: Yes
Number of Channels: Quad
Primary Resistance: 1 Ohms
Secondary Resistance: 1 Ohms
Maximum DC Resistance: 800 mOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
