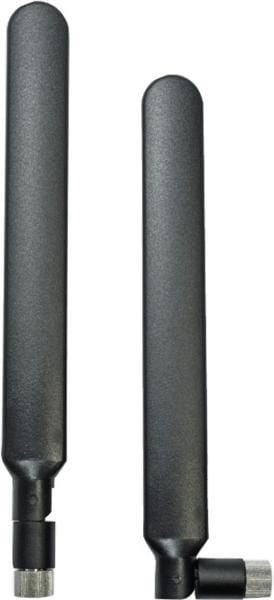

Pulse Electronics SPDA24700/2700 Passive Antenna LTE Swivel Blade SMA Male

Gain: 2 dBi

VSWR: 2.5:1

Style: Tilt/Swivel

Width: 7.7 mm

Length: 223.5 mm

Impedance: 50 Ohms

Technology: 4G

Application: Portable Radio Antennas

Unit Weight: 47 g

Polarization: Linear

Power Rating: 3 W

Mounting Style: Panel Mount

Electrical Type: Dipole

Number of Bands: 3 Band

Center Frequency: 830 MHz, 1.94 GHz, 2.6 GHz

Mechanical Style: Whip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WiFi, WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
