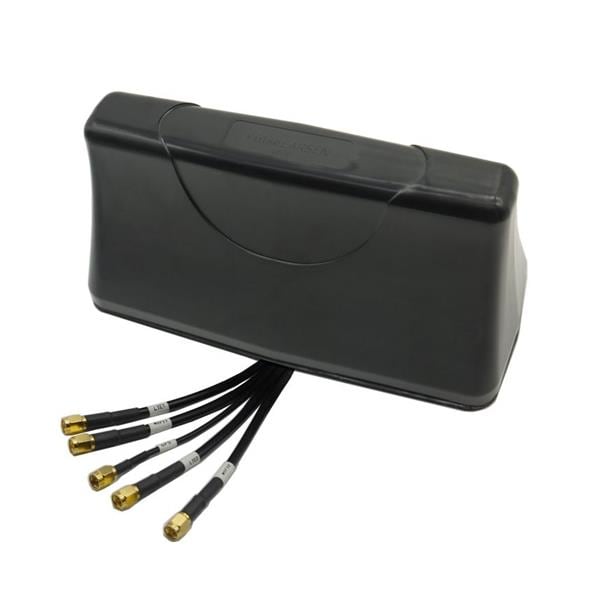

Pulse Electronics RAZ62311AM MIMO Vehicular Ant Blk 2LTE 3WIFI 1GNSS

Gain: 4.6 dBi, 4.9 dBi, 6 dBi, 6.6 dBi

VSWR: 2:1

Style: Sharkfin

Width: 88.5 mm

Height: 92.6 mm

Length: 195.1 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 5.2 M LMR195 x 5, 5.2 M RG174

Application: Telematics, Fleet Management, Trucking, Navigation, GIS, Public Safety, Search and Rescure, Metering, Utility Boxes

Unit Weight: 1.361 kg

Cable Length: 5181 mm

For Use With: Fleet Management, Metering, Utility Boxes, Navigation, GIS and Survey, Public Safety, Trucking, Vehicular Use Telematics

Polarization: RHCP, Vertical

Power Rating: 45 W

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 4 Band

Center Frequency: 802 MHz, 2205 MHz, 2450 MHz, 5412.5 MHz, 1561.098 MHz, 1575.42 MHz, 1602.56 MHz

Mechanical Style: Module

Maximum Frequency: 5.925 GHz

Minimum Frequency: 644 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: RP-SMA Male, SMA Male

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), DSRC

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
