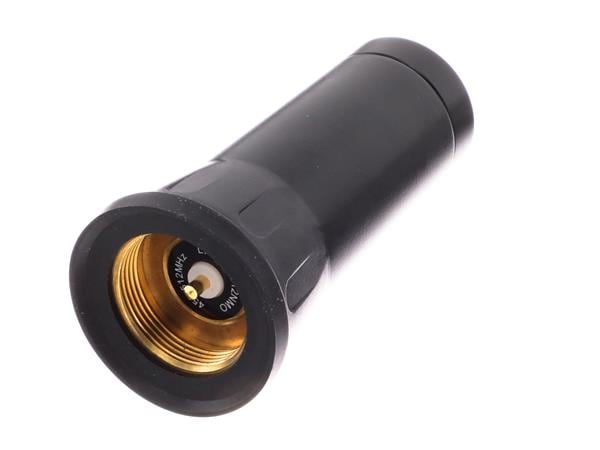

Pulse Electronics LPT450/512NMO Passive Antenna LPT 450-512MHZ ANTENNA

Gain: 4.6 dBi

VSWR: 2.3:1

Style: Straight

Length: 89.9 mm

Diameter: 44.2 mm

IP Rating: IP67

Impedance: 50 Ohms

Application: Public Safety

Power Rating: 100 W

Mounting Style: NMO Mount

Number of Bands: 2 Band

Center Frequency: 450 MHz, 480 MHz, 512 MHz

Mechanical Style: Whip

Maximum Frequency: 512 MHz

Minimum Frequency: 450 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: NMO

Protocol - WiFi - 802.11: LoRaWAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: GSM
