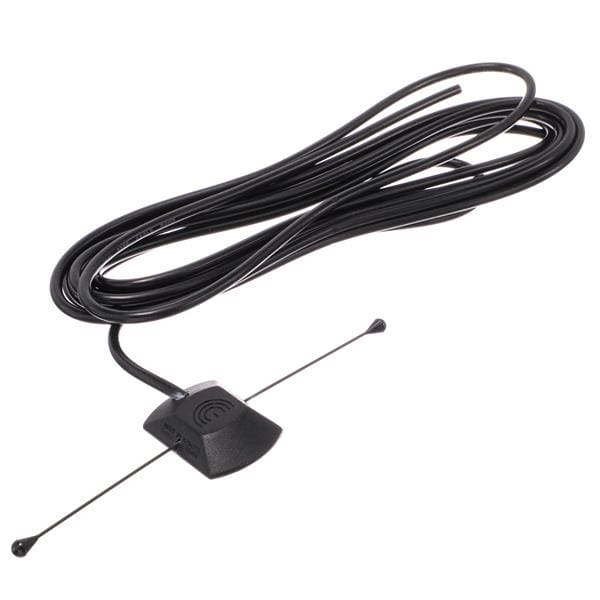

Pulse Electronics KGI768 Passive Antenna GLS MT DIPOLE UTY 768 NPB

Gain: 2 dBi

VSWR: 2:1

Style: T-Bar

Length: 170 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 14 ft RG58

Application: Public Safety, First Responders

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 833 MHz

Mechanical Style: Module

Maximum Frequency: 896 MHz

Minimum Frequency: 768 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: LoRaWAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), UMTS
