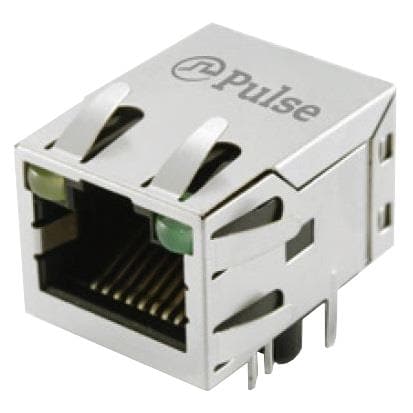

Pulse Electronics JXD1-0026NL Modular RJ45 1x1 Tab Up 1:1 GreenPHY 1000Base-T

Color: Black

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: 10/100/1000 Base-T

Unit Weight: 14.652 g

Configuration: 1x1

Tab Direction: Tab Up

Mounting Angle: Right Angle

Mounting Style: Through Hole

Contact Plating: Gold

LED L / R Color: Yellow / Green

Number of Ports: 1 Port

Contact Material: Copper Alloy

Termination Style: Solder

Number of Contacts: 8 Contact

Number of Positions: 8 Position

Performance Category: Cat 5e

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
