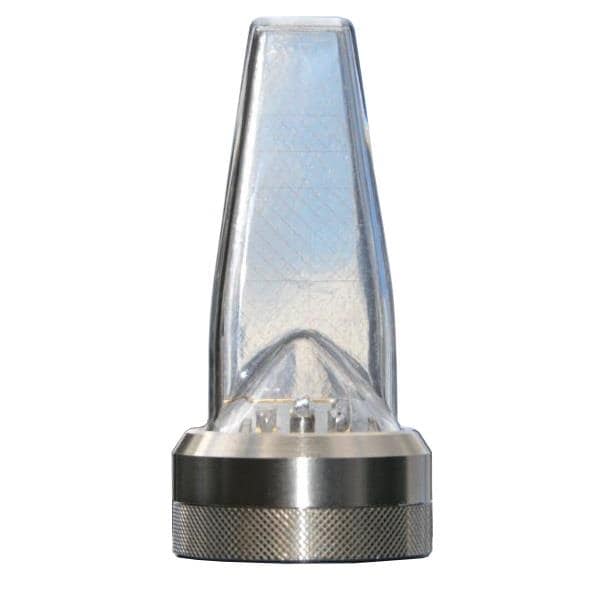

Pulse Electronics ICEFIN49DMN Passive Antenna IP67 4900-6000 MHz Direct Mount

Gain: 6.2 dBi

VSWR: 2:1

Style: Sharkfin

Length: 66.66 mm

Diameter: 38 mm

IP Rating: IP67

Impedance: 50 Ohms

Technology: Multiband

Application: Bus/Rail/Transit, IoT, DSRC, 3G/4G LTE, ISM, LMR, Public Safety, WiFi

Polarization: Vertical

Power Rating: 30 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Module

Maximum Frequency: 6 GHz

Minimum Frequency: 4.9 GHz

Termination Style: Connector

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
