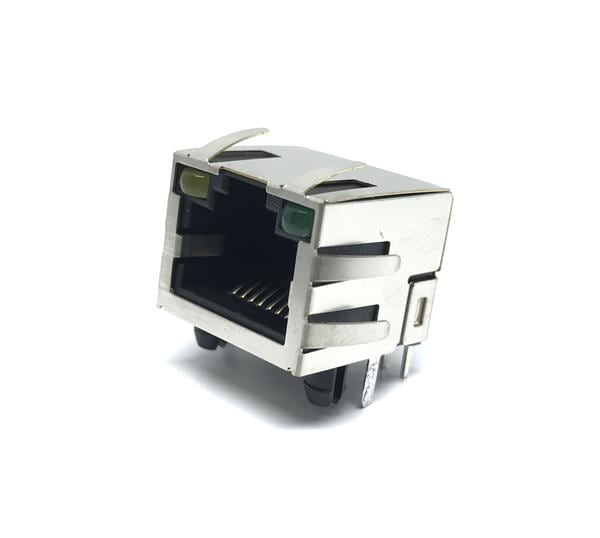

Pulse Electronics E5908-4V0S54-L Modular CONN RJ45 2X1 8P8C 30u Au THT

Color: Black

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: 10 Base-T

Unit Weight: 19 g

Configuration: 2x1

Mating Cycles: 750 Cycles

Tab Direction: Tab Up and Tab Down

Current Rating: 1.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 125 VAC

Contact Plating: Gold

Number of Ports: 2 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 3

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
