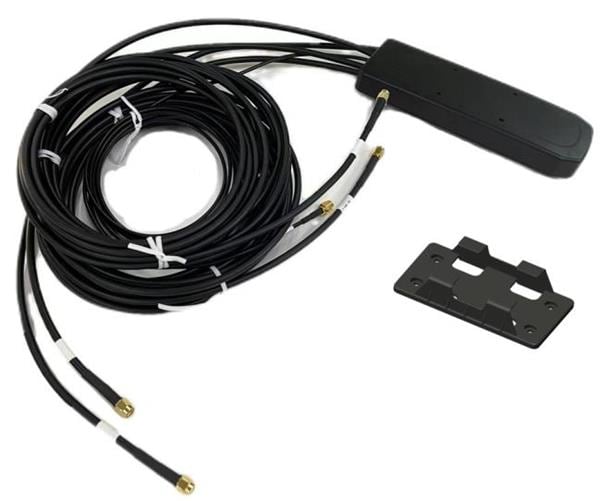

Pulse Electronics CDB52211AM Vehicle Antennas Covert Vehicular Antenna 5 -in -1 Candy Bar 2x 5G 2x WiFi 1x GNSS 178x60x19mm

Gain: 5.5 dBi

VSWR: 2:1, 2.5:1

Width: 60 mm

Height: 19 mm

Length: 178 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Length: 204 in

Polarization: Linear, RHCP

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Monopole, Patch

Frequency Range: 617 MHz to 7.125 GHz

Number of Bands: 3 Band

Maximum Frequency: 7.125 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
