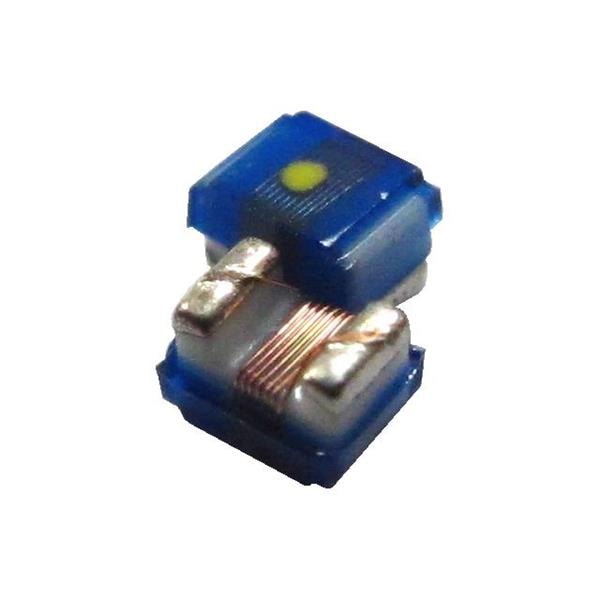

Pulse Electronics AWCS00292821R62G00 RF Inductors Chilisin RF inductor Wire Wound-STD
ModelAWCS00292821R62G00
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 2.79 mm
Height: 2.1 mm
Length: 2.92 mm
Core Type: Wire Wound
Q Minimum: 45
Shielding: Unshielded
Tolerance: 2 %
Inductance: 620 nH
Termination: Standard
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 25 MHz
Termination Style: SMD/SMT
Maximum DC Current: 300 mA
Maximum DC Resistance: 1.4 Ohms
Self Resonant Frequency: 375 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
