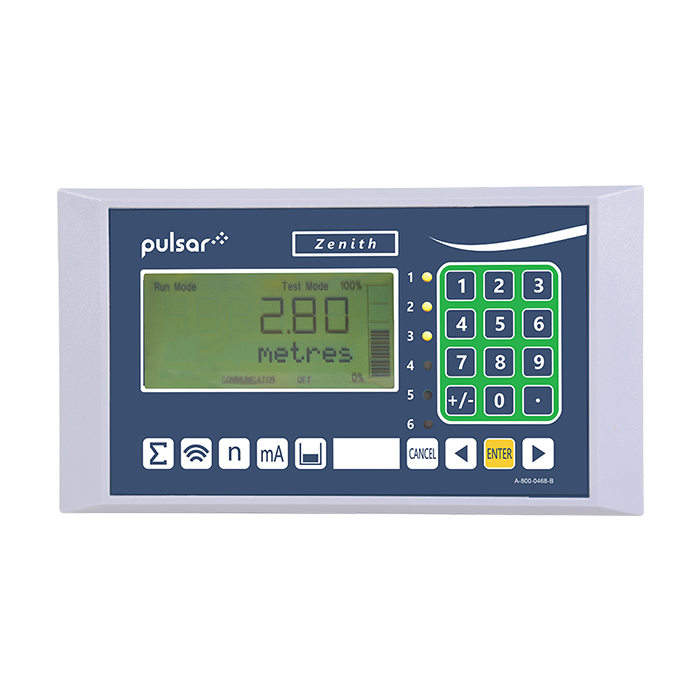

Pulsar measurement Zenith Pump Controller

Controller Body Dimensions: 200 mm x 112 mm (7.9 in x 4.4 in) front, 165 mm x 105mm (6.5 in x 4.1 in) cut-out

WeightNominal: 1 kg (2.2 lbs)

Case Material: Stainless steel and polycarbonate, flame resistant to UL94 V0

Power Supply: 115 V AC +5%/ -10% 50/60 Hz, 220 V AC +5%/ -10%, 18-36 V DC

Volt-free Contacts: 6 Form 'C' (SPDT) 5 A, 220 V AC

Digital Inputs: 7 NO or NC with 24 V DC internal supply, available max. 20 mA

Analog Outputs (adjustable): Isolated output of 4-20mA or 0-20mA into 500 Ω (user-programmable and adjustable) 0.1% resolution

Analog Input: Isolated input for the loop-powered device. 4-20mA source

Serial Output: RS232 via RJ11 port

Display: 6 digits plus 12 character text, plus bar graph with direction indicators, remote communicator identifier, and program/run/test mode indicators
