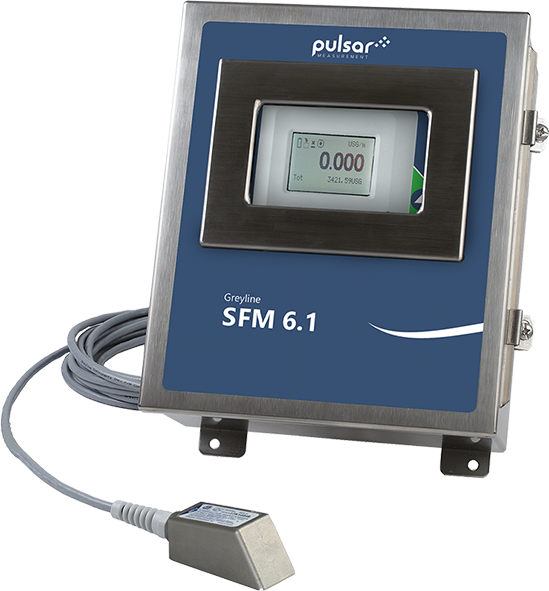

Pulsar measurement SFM 6.1 Slurry Flow Meter

Flow Rate Range: ±0.038 m/s to 12.2 m/s (±0.125 ft/s to 40 ft/s) in most applications

Pipe Size: Any pipe ID from 12.7 mm to 4.6 m (0.5 in to 15 ft)

Accuracy: ±2% of reading or 30.5 mm/s (1.2 in/s) whichever is greater. Requires solids or bubbles minimum size of 100 microns, minimum concentration 75 ppm. Repeatability: ±0.1%, Linearity ±0.5%

Display: 100-240 V AC 50/60 Hz (see Options), 2.4 to 5.6 W depending on options

Configuration: Built-in 5-button keypad with English, French, or Spanish language selection

Power Input: 100-240 V AC 50/60Hz 10 VA maximum. Optional: 9-32 V DC, 10 Watts maximum

Output: Isolated 4-20mA (1 kΩ load max.) or 0-5 V DC (Field Selectable)

Control Relays: Qty 2, rated 5 A SPDT, programmable flow alarm and/or proportional pulse

Data Logger: Built-in 26 million point logger with USB output and Windows software

Enclosure: NEMA4 stainless steel with window

Electronics Operating

Temperature: -23 °C to 60 °C (-10 °F to 140 °F)

Shipping Weight: 6.3 kg (14 lb)

Approvals: CSA, UL/EN 61010-1
