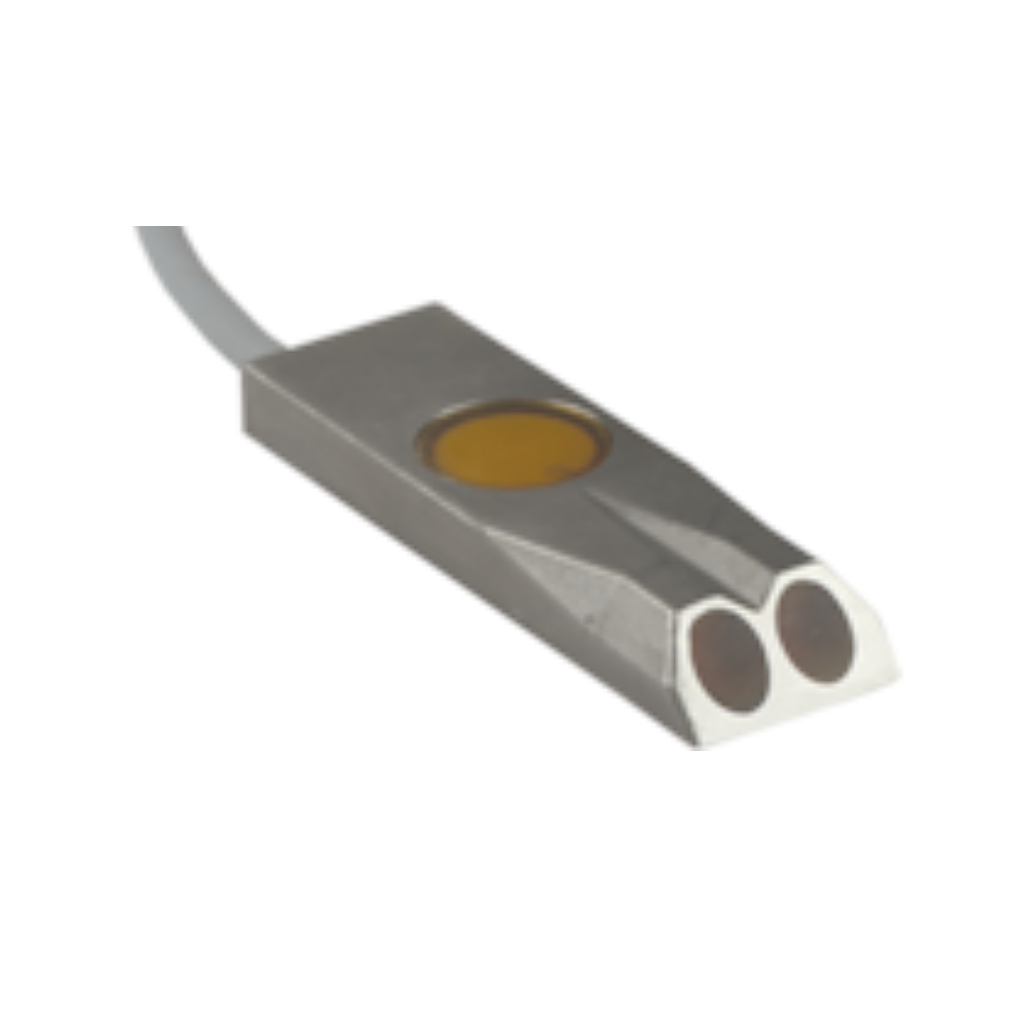

Pulsar measurement QZ02L Transducer (25.4mm - 4.57m; 0.031 m/s - 6.2 m/s)

Velocity Measurement Range: 0.031 m/s to 6.2 m/s (0.1 ft/s to 20 ft/s) and reverse flow to -1.5 m/s (-5 ft/s) in fluids containing bubbles or solids with a minimum size of 100 microns and a minimum concentration of 75 ppm to act as acoustic reflectors

Level Measurement Range: Minimum Head: 25.4 mm (1 in). Maximum Head: 4.57 m (15 ft)

Operating Temperature: -15 °C to 80 °C (5 °F to 175 °F)

Exposed Materials: 316 stainless steel, epoxy resin, polyurethane

Sensor Cable: 7.6 m (25 ft) submersible polyurethane jacket, shielded, 3-coaxial

Sensor Mounting: Includes MB-QZ stainless steel mounting bracket

Temperature Compensation: Automatic, continuous
