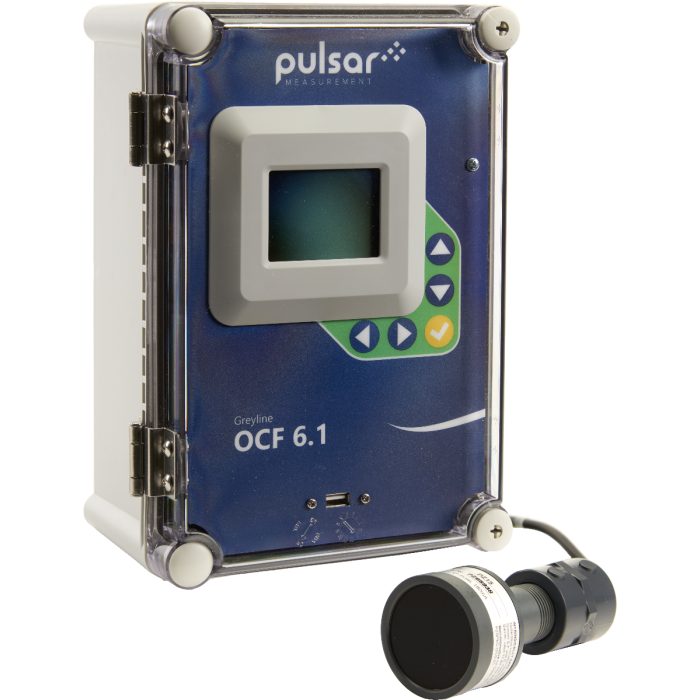

Pulsar measurement OCF 6.1 Non-Contacting Open Channel Flow Meter

Operating Parameters: Flume or weir to measure flow, or inside / above a tank to measure level

Programming: Built-in 5-key calibrator with English, French, or Spanish language selection

Electronics Enclosure: NEMA4X (IP66) polycarbonate with clear, shatterproof cover

Accuracy: ±0.25% of measured range or 2 mm (0.08 in) whichever is greater, Repeatability and Linearity: ±0.1%

Display: White, backlit matrix — displays flow rate, totalizer, relay status, operating mode, and calibration menu

Power Input: 100-240 V AC 50/60 Hz (see Popular Options), 10 V A max depending on options

Output: Isolated 4-20mA 0-5 V, 1 kΩ load maximum

Control Relays: 2 Relays, form ‘C’ dry contacts rated 5 A SPDT; programmable level alarm, pump control, pump alternation, failsafe/ echo-loss, air temperature alarm

Data Logger: Built-in 26 million point data logger with USB output and Windows software.

Operating Temp.(Electronics): -20 °C to 60 °C (-5 °F to 140 °F)

Approximate Shipping Weight: 4.5 kg (10 lb)

Approvals: CE, cCSAus
