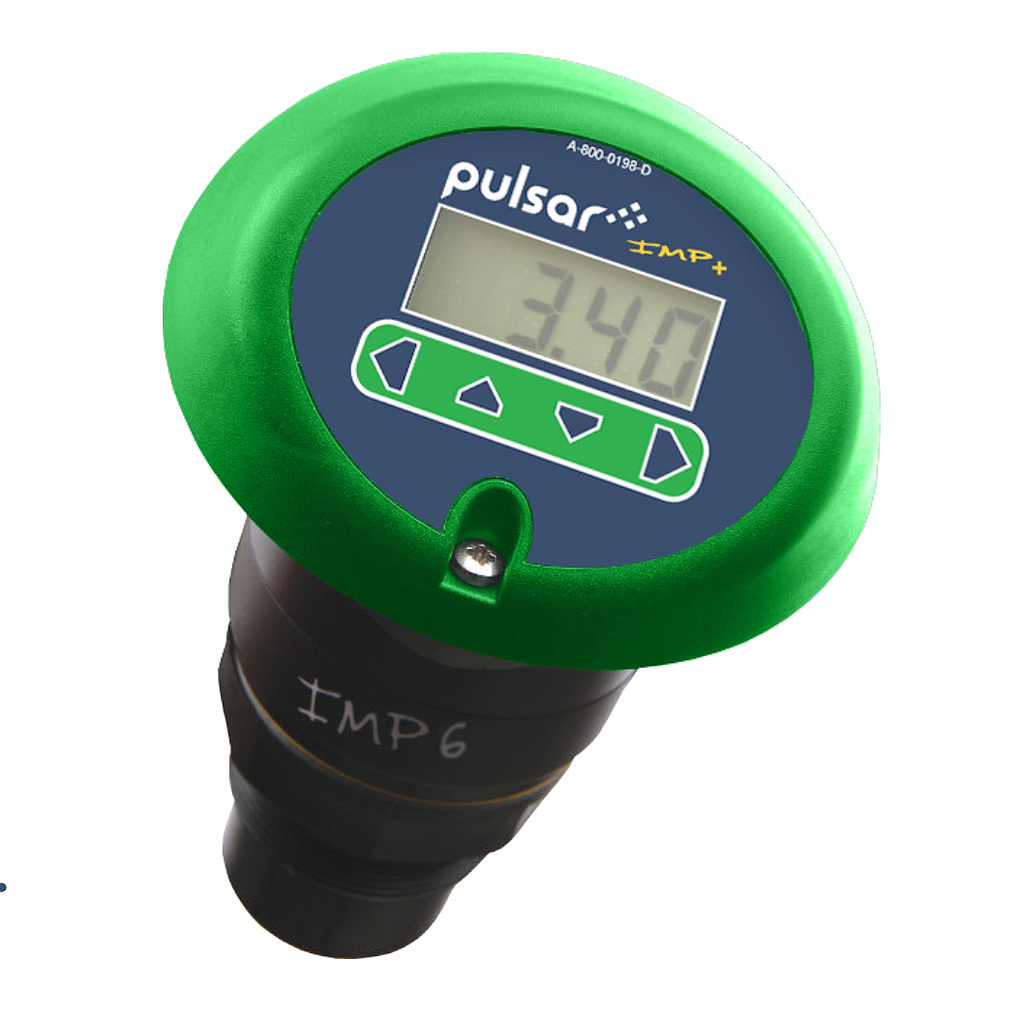

Pulsar measurement IMP6 Non-contacting level sensor (300mm - 6m (11.8in - 19.7ft))

Controller Body Dimensions: 186 mm H x 133 mm D (5.2 in x 7.3 in)

Weight: Nominal 1 kg (2.2 lb)

Cable Entry Detail: 2 off cable glands 4.5 mm to 10 mm (Torque to 2NM)

Mounting: 1.5 in BSP/NPT (IMP3 & IMP6), 2 in BSP/NPT (IMP10)

ENVIRONMENTAL

IP Rating: IP67

Temp. Range (Process): -40 °C to +80 °C (-40 °F to +176 °F)

Temp. Range (Ambient): -20 °C to +65 °C (-4 °F to +149 °F)

IMP6

Beam Angle (-3dB Half Power): <10° inclusive

Operating Frequency: 75 kHz

Measurement Range: 300 mm to 6 m (11.8in to 19.7ft)
