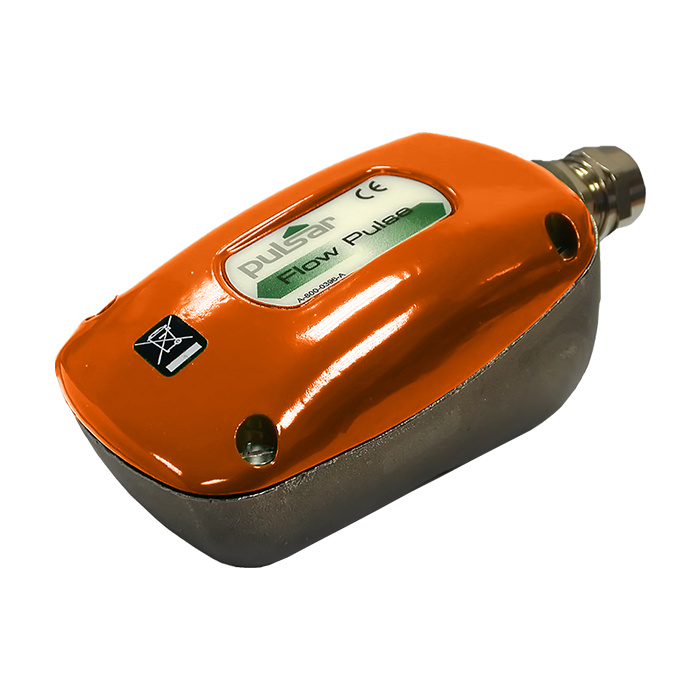

Pulsar measurement FlowPulse Sensor Ultrasonic Clamp-on Flow Sensor (0.3 m/s - 4.0 m/s (0.98 ft/s - 13.12 ft/s))

Sensor Body Dimensions: 120 mm x 65 mm x 65 mm (4.75 in x 2.6 in x 2.6 in)

Weight: 1.5 kg (3.3 lbs)

Maximum Separation: 500 m (1,640 ft)

Operating Temperature (Electronics): -20 °C to +70 °C (-4 °F to +158 °F)

Velocity Range: 0.3 m/s to 4.0 m/s (0.98 ft/s to 13.12 ft/s) standard version or 0.3 m/s to 10 m/s (0.98 ft/s to 32.81 ft/s) high flow version

Pipe Wall Thickness: Metal or rigid pipe up to 20 mm (0.8 in) thick

Power Supply: 18-28 V DC
