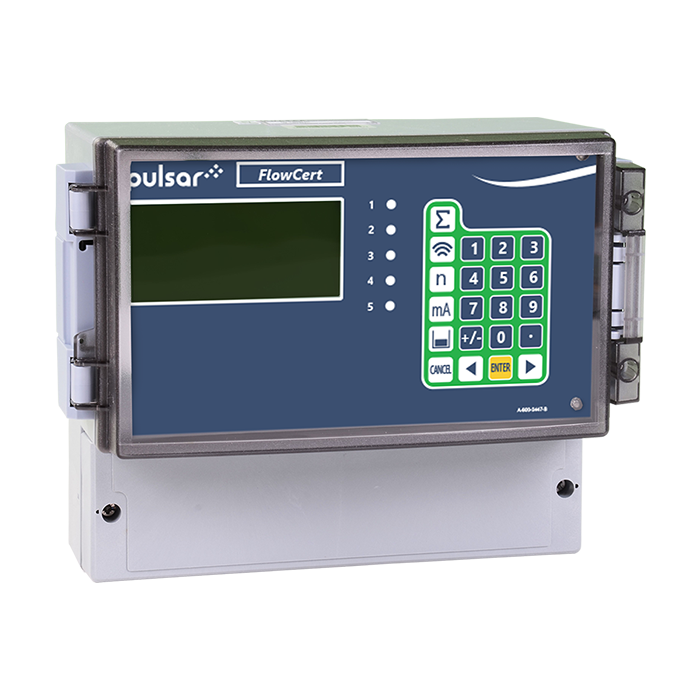

Pulsar measurement FlowCERT Open Channel Flow Measurement

Controller Body Dimensions: 235 mm x 184 mm x 120 mm (9.3 in x 7.2 in x 4.7 in)

Weight: Nominal 1 kg (2.2 lb)

Enclosure Material/ Description: Polycarbonate, flame resistant to UL94-5V

Cable Entry Detail: 10 cable entry knock outs, 5 x M20, 1 x M16 underside, x 18 mm (0.7 in) dia (PG11) at rear

Transducer Cable Extensions: 2-core screened

Maximum Separation: Up to 1,000 m (3,280 ft)

IP Rating: IP65 / NEMA 4X

Max. & Min. Temperature (Electronics): -20 °C to +50 °C (-4 °F to +120 °F)

Accuracy / Repeatability: Dependent on application and sensor used. See sensor specification.

Resolution: Dependent on application and sensor used. See sensor specification.

Min. & Max. Range: 0 mm to 15 m (0 in to 49.2 ft). Dependent on the sensor used.

Echo Processing: DATEM (Digital Adaptive Tracking of Echo Movement)

Rate Response: Fully Adjustable

Analog Outputs: 2 x isolated (floating) output (to 150 V) of 4-20mA or 0-20mA into 500 Ω (user programmable and adjustable) 1 μa resolution

Digital Output: Full Duplex RS232

Volt Free Contacts, Number, & Rating: 5 form “C” (SPDT) rated at 5A at 115 V / 240 V AC

Display: 6 digits plus 12 character text, plus bar graph with direction indicators, remote communicator identifier, and program / run / test mode indicators
