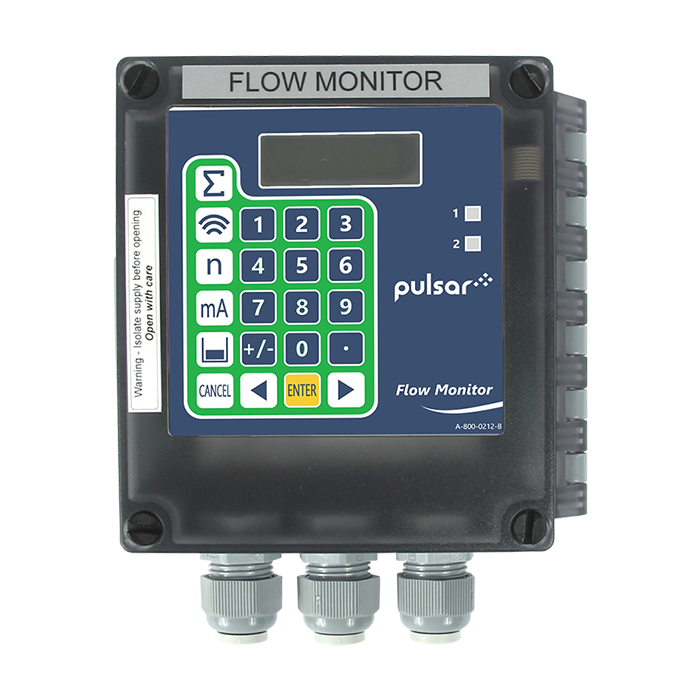

Pulsar measurement Flow Monitor The Pulsar Flow Monitor

Controller Body Dimensions: 130 mm x 150 mm x 63.5 mm (5.12 in x 5.9 in x 2.5 in)

Weight: 0.65 kg (1.42 lbs)

Enclosure Material: ABS base with polycarbonate lid, flammability rating UL94HB

Maximum Separation: 500 m (1.640 ft)

Max and Min Temperature (Electronics): -20 °C to +50 °C (-4 °F to +122 °F)

Operating Voltage: 85-264 V AC 50/60 Hz, 22-28 V DC

Power Consumption: 10 W maximum power (typically 8 W)
