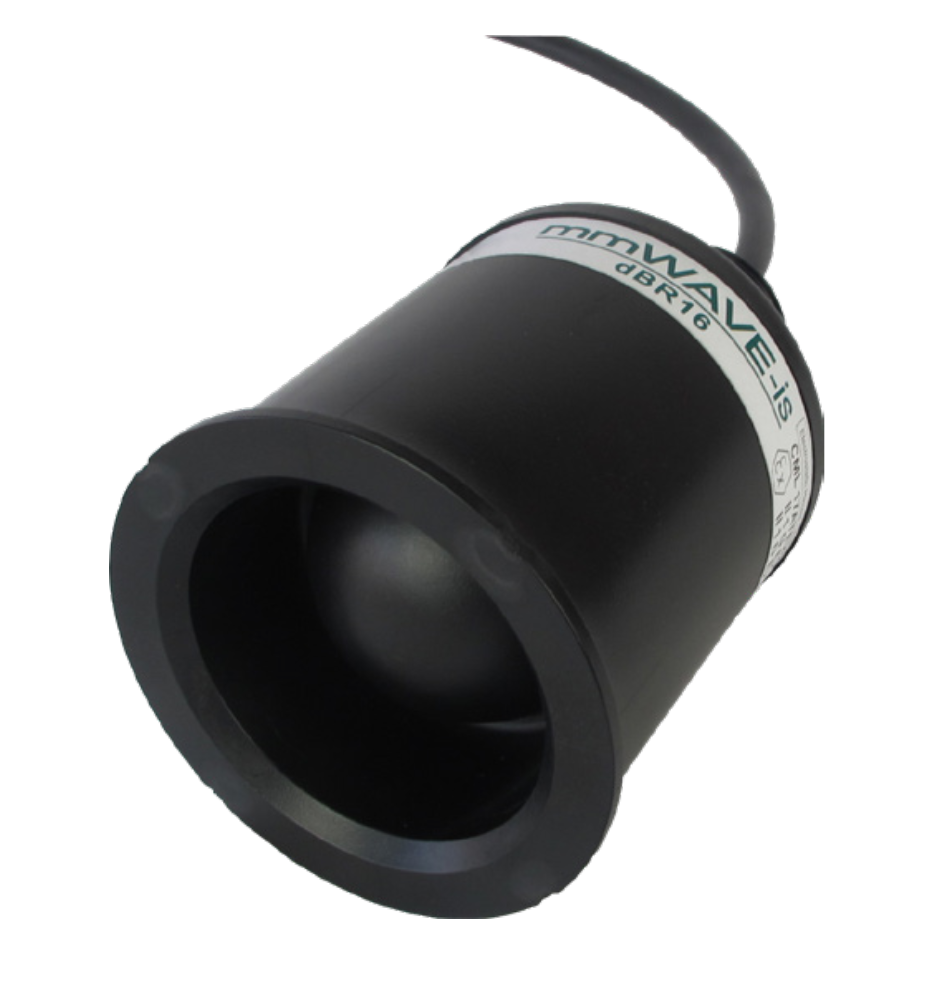

Pulsar measurement dBR16 Radar Transducer

PHYSICAL

Sensor Body Dimensions: 90 mm D x 130 mm H (3.5 in x 5.1 in)

Weight Nominal 1.1 kg (2.4 lb)

Measurement Range dBR8: 8 m (26.2 ft); dBR16: 16 m (52.5 ft)

Frequency V-band

Beam Angle 8º

Effective Beam Angle

(using DATEM) 3º

Sensor Body Material Valox 357U

Cable Lengths Standard: 5 m, 10 m, 20 m, or 30 m (16.4 ft, 32.8 ft, 65.6 ft, or 98.4 ft). Optional: up to 150 m (492 ft) in 10 m (32.8 ft) increments

Maximum Separation 500 m (1,640 ft)

Mounting Connection 1” BSP or 1” NPT

Mounting Options ANSI or DIN flange

ENVIROMENTAL

Enclosure Protection IP68/NEMA 6P

Max. & Min. Temperature

(Electronics) -20 ºC to +80 ºC (-4 ºF to +176 ºF)

Process Pressure -1 to +4 bar (-14.5 to 58 psi)

APPROVALS

CE Approvals Complies with EN61326-1:2013 for emissions and immunity

Complies with EN302-729:2016 for radar emissions and immunity

ATEX ATEX Zone 0 (Ex ia): Ex II 1 G Ex ia IIC T4 Ga Ta = -20 ºC to +80 ºC, Ex II 1 D Ex ia IIIC T135ºC Da Ta =-20 ºC to +80 ºC.

ATEX Zones 1 & 2: Ex II 2 G Ex mb IIC T4 Gb, Ex II 2 D Ex mb IIIC T135 °C Db

PERFORMANCE

Accuracy ±2 mm (0.08 in)

Repeatability ±1 mm (0.04 in)

Resolution ±1 mm (0.04 in)

Near Blanking Distance 77 mm (3.03 in) from the drip shield
