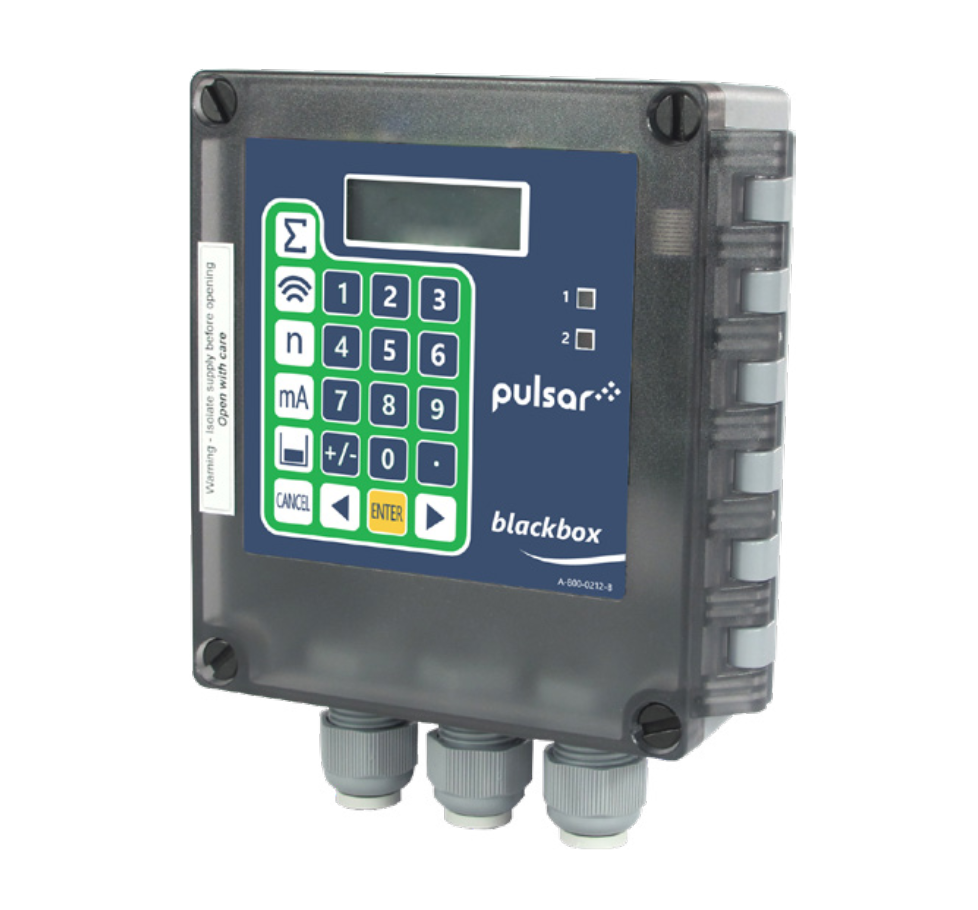

Pulsar measurement Blackbox 130 Controller (0.65kg-0.75kg (1.4lbs-1.65lbs))

Weight: 0.65 kg to 0.75 kg (1.4 lbs to 1.65 lbs)

Cable entry detail: Underside fitted with 3 x M20, nylon cable glands suitable for 0.23 in to 0.47 in (6 mm to 12 mm) cable

Max and Min Temperature: -20 ºC to +55 ºC (-4 ºF to +131 ºF)

Analog Output: Isolated or non-isolated output of 4-20mA or 0-20mA into 1 kΩ (user programmable and adjustable) 0.1% resolution

Digital Output: RS232 for programming and data extraction

Display: 2 x 12 alpha numeric

Power supply: 115 V AC +5% / -10% 50/60 Hz, 230 V AC +5% / -10% 50/60 Hz, 10-28 V DC, 10 W maximum power (typically 5 W)

Fuses: 50 mA at 230 V AC, 100 mA at 115 V AC
