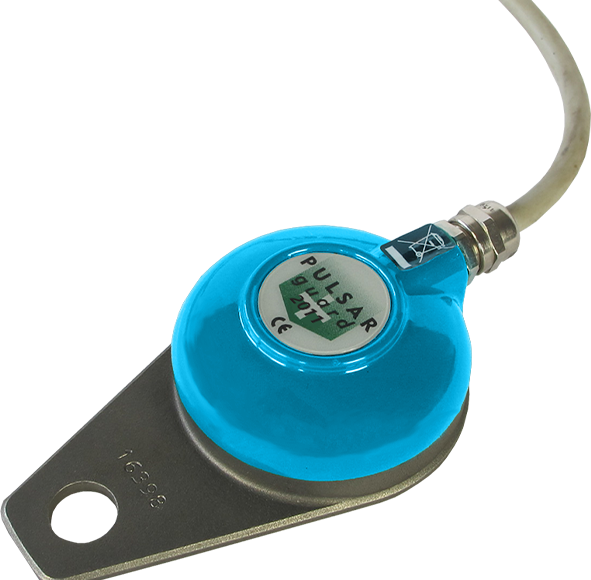

Pulsar measurement 2011G Acoustic Sensor
Operating temperature: -40 °C (-40 °F) to +40 °C/+104 °F (EEx ia IIC T6) / to +92 °C/+197.6 °F (E Ex ia IIC T4)
Power supply: 23-30V DC
Detection Frequency: 100 to 600 kHz
Analog Output: 0-10 V DC
Cable: 4 m of 4 core shielded 24 AWG
Ingress Protection: IP68 (NEMA 4)
Sensor Mounting: Tab with 14 mm hole (0.55 in)
Construction: Cap and base housing in 316 stainless steel
Weight: 640 g (1.41 lb) (includes cable)
Size: 125 mm long (4.92 in)
Electrical Connection: 4 core screened value
CE Approval: See EC Declaration of Conformity in the manual
