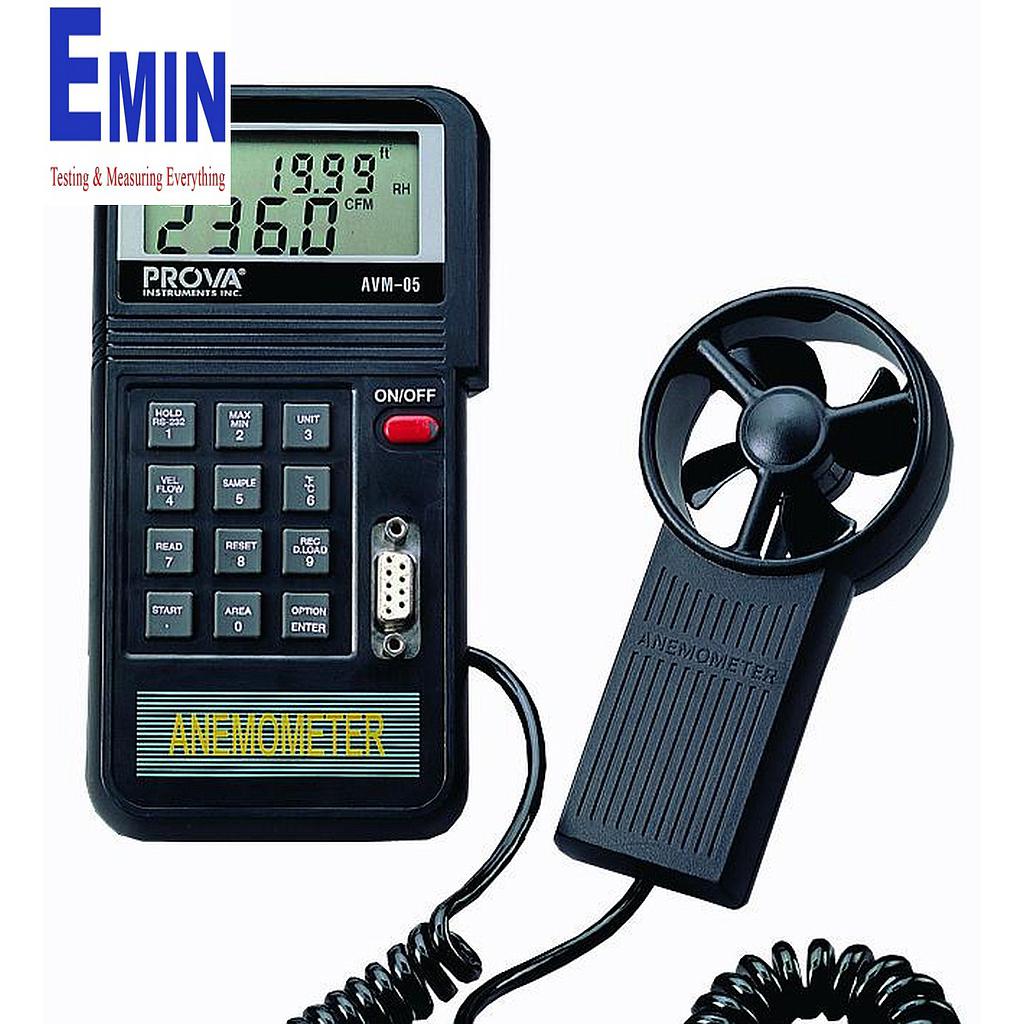

PROVA AVM-05 Flow Anemometer (0.0 ~ 45.0m/s)

Specifications

Bearing: Sapphire jewel bearing

Temperature sensor: K-type thermocouple

Mounting Nut: 1/4" x 20

Operating Temperature: Meter: 0°C ~ 50°C (32°F ~ 122°F)

Vane: 0°C ~ 60°C (32°F ~ 140°F)

Operating Humidity: Less than 80% RH

Operating Pressure: 500 mB ~ 2 Bar

Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)

Power Consumption: Approx. 3 mA

Battery Type: 9V

Battery Life: 50 hours(for 300mA-hrs battery)

Averaging Period for Wind Speed Measurement:

m/s 0.6 sec.(approx.)

ft/min 1.2 sec.(approx.)

knots 1.2 sec.(approx.)

km/hr 2.2 sec.(approx.)

Dimension: Meter: 88x 168x 26.2mm (3.46"x 6.61"x 1.03")

Dimension: Vane: 66x 132x 29.2mm (2.60"x 5.22"x 1.15")

Weight: 350g / 12.34oz (battery included)

Accessories:

Carrying case x 1

Users manual x 1

9V Battery x 1
