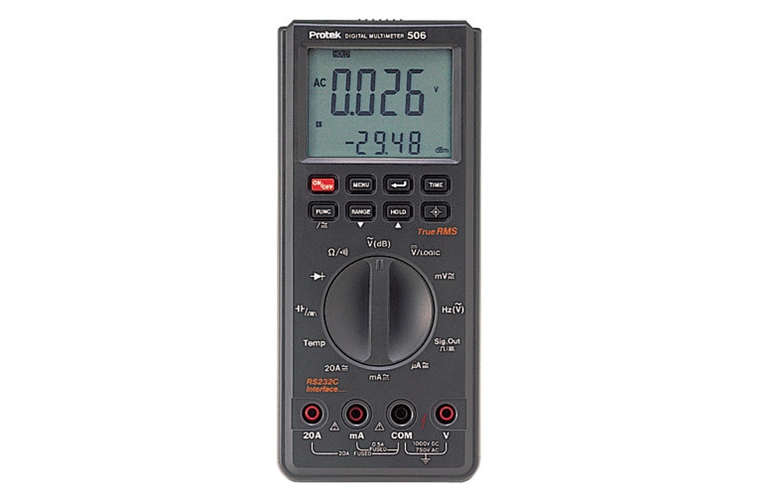

PROTEK 506 Digital Multimeter
ManufacturerPROTEK(View more products from this manufacturer)
Model506
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Volts DC | |
| Ranges (5) | 400mV to 1000V |
| Best Resolution | 0.1mV |
| Accuracy | ±(0.5% Rdg + 2D) |
| Volts AC | |
| Ranges (5) | 400mV to 750V |
| Best Resolution | 0.1mV |
| Accuracy | ±(1.5% Rdg + 5D) |
| DC Current | |
| Ranges | 400µA, 400mA, 20A |
| Best Resolution | 0.1µA |
| Accuracy | ±(1% Rdg + 2D) |
| AC Current | |
| Ranges | 400µA, 400mA, 20A |
| Best Resolution | 0.1µA |
| Accuracy | ±(1.5% Rdg + 2D), 50Hz to 100Hz |
| Resistance | |
| Ranges (6) | 400W to 40MW |
| Best Resolution | 0.1W |
| Accuracy | ±(0.5% Rdg + 2D) |
| Decibel | |
| Ranges (4) | -31.6 to + 59.71dB |
| Best Accuracy | µ0.5dB |
| Continuity | |
| Buzzer | Sound at < 100W . |
| Display Will Read | Shrt when R < 100W Open when R > 100W |
| Diode | |
| Display Will Read | Shrt when V < 0.5V Good when V = 0.5V to 1V Open when V > 1V |
| Frequency | |
| Ranges (4) | 10kHz to 10MHz |
| Best Resolution | 1Hz |
| Accuracy | ±(0.01% Rdg x 1D) |
| Sensitivity | 1.5V RMS |
| Temperature | |
| Range | -17 to 1200°C (0 to 2000°F) |
| Resolution | 1°C and 1°F |
| Accuracy | ±(3% Rdg + 3D) |
| Logic Probe | |
| TLL Level Display Will Read | Lo when V is < 0.8V Hi when V is > 2.0V W when V is 0.8V to 2.0V |
| Capacitance | |
| Range | 0 to 100°F |
| Resolution | 0.01°F |
| Accuracy | ±(3% Rdg + 5D) |
| Inductance | |
| Range | 0 to 100H |
| Resolution | 0.01H |
| Miscellaneous | |
| Signal Out | 2048Hz, 4096Hz, 8192Hz Square wave |
| Timer Range | 1 second to 10 hours |
| RS-232 Interface | 1200bps, 9 Pin Connector |
| General Specifications | |
| Size | 8.0" H x 3.6" W x 1.5" D |
| Weight | 1 lb. |
| Power | 9V battery |
| Supplied Accessories | Manual, Test leads, Holster, Temp adapter, "K" type temp probe, RS-232 cable and Software |
| Volts DC | |
| Ranges (5) | 400mV to 1000V |
| Best Resolution | 0.1mV |
| Accuracy | ±(0.5% Rdg + 2D) |
| Volts AC | |
| Ranges (5) | 400mV to 750V |
| Best Resolution | 0.1mV |
| Accuracy | ±(1.5% Rdg + 5D) |
| DC Current | |
| Ranges | 400µA, 400mA, 20A |
| Best Resolution | 0.1µA |
| Accuracy | ±(1% Rdg + 2D) |
| AC Current | |
| Ranges | 400µA, 400mA, 20A |
| Best Resolution | 0.1µA |
| Accuracy | ±(1.5% Rdg + 2D), 50Hz to 100Hz |
| Resistance | |
| Ranges (6) | 400W to 40MW |
| Best Resolution | 0.1W |
| Accuracy | ±(0.5% Rdg + 2D) |
| Decibel | |
| Ranges (4) | -31.6 to + 59.71dB |
| Best Accuracy | µ0.5dB |
| Continuity | |
| Buzzer | Sound at < 100W . |
| Display Will Read | Shrt when R < 100W Open when R > 100W |
| Diode | |
| Display Will Read | Shrt when V < 0.5V Good when V = 0.5V to 1V Open when V > 1V |
| Frequency | |
| Ranges (4) | 10kHz to 10MHz |
| Best Resolution | 1Hz |
| Accuracy | ±(0.01% Rdg x 1D) |
| Sensitivity | 1.5V RMS |
| Temperature | |
| Range | -17 to 1200°C (0 to 2000°F) |
| Resolution | 1°C and 1°F |
| Accuracy | ±(3% Rdg + 3D) |
| Logic Probe | |
| TLL Level Display Will Read | Lo when V is < 0.8V Hi when V is > 2.0V W when V is 0.8V to 2.0V |
| Capacitance | |
| Range | 0 to 100°F |
| Resolution | 0.01°F |
| Accuracy | ±(3% Rdg + 5D) |
| Inductance | |
| Range | 0 to 100H |
| Resolution | 0.01H |
| Miscellaneous | |
| Signal Out | 2048Hz, 4096Hz, 8192Hz Square wave |
| Timer Range | 1 second to 10 hours |
| RS-232 Interface | 1200bps, 9 Pin Connector |
| General Specifications | |
| Size | 8.0" H x 3.6" W x 1.5" D |
| Weight | 1 lb. |
| Power | 9V battery |
| Supplied Accessories | Manual, Test leads, Holster, Temp adapter, "K" type temp probe, RS-232 cable and Software |
