Product image

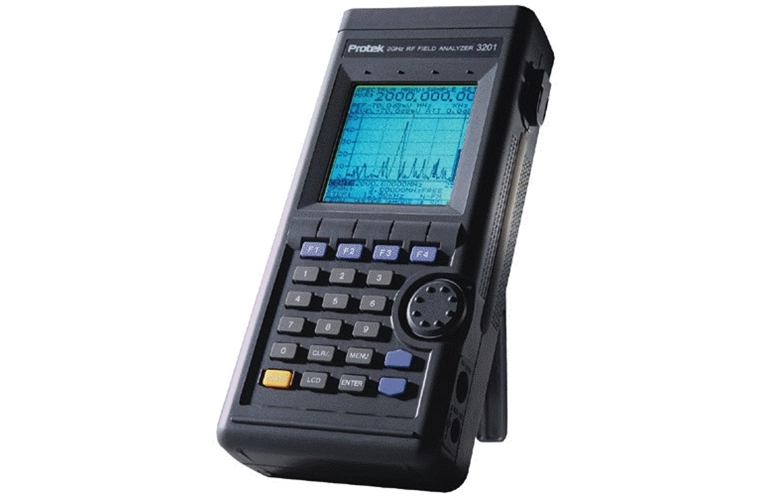

Protek 3201N Hand-Held 2GHz RF Signal Strength Analyzer

ManufacturerPROTEK(View more products from this manufacturer)
Model3201N
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency
Range100kHz ~ 2GHz
Resolution3.125kHz
AccuracyTXO: ±3ppm Display: ±1.5ppm
Modulation BandwidthW-FM: 180kHz N-FM: 12.5kHz AM/SSB: 2.4kHz
Step Range"AM/SSB: 2.5kHz Fixed
FMMultiple of 6.25kHz"
Span Range"AM/SSB: 400kHz Fixed
FMMultiple of 1MHz"
Frequency SelectionStart, Stop, Center Span Setup
Amplitude
Measurement Range-20dBm to -100dBm
Average Noise Level-100dBm
Amplitude UnitsdBm, dBmV, dBuV
Reference Level Accuracy±2dB
Reference Level Range+20dBm to -70dBm
Log Scale10dB/DIV
Internal Atten10dB
Sweep
Speed500 to 2000msec
Trigger SourceN-FM/ W-FM/ AM/ SSB
Trigger ModeFree Run, Single Run, Continous Wave, Squelch Run
Trigger LevelTTL Level
Marker ModesMarker, Delta Marker
Memory
Trace Storage50 Waves
Setup Storage50 States
Display
TypeMono STN LCD
Resolution192*192
LCD BackLightON/OFF/AUTO
ModeSpectrum, Multi Bar
Input
RF Input ConnectorN Type Female, 50ohm
Maximum Input PowerMax. +10dBm, 5V RMS
Frequency Counter
Range9MHz to 2GHz
Resolution7 Digits
Samping Time1sec
Input Impedance50ohm
Max. Input VoltageMax. 5Vrms
RF Input ConnectorBNC type, 50ohm
Data Memory10 data
General Specification
Operation Temperature0 to 40 deg.
Humidity35RH to 85RH
Storage Temperature-10 to 50 deg.
Power
Power SourceAA type Ni-MH
Power AdaptorSMPS DC 12V
Auto PowerOFF/5/10/20/30Min
Dimension & Weight
Size105(W)*220(H)* 45(D)
Weight700g
Other
Otherº
Antennaº
RS-232 Interfaceº
Mini Printerº
Frequency
Range 100kHz ~ 2GHz
Resolution 3.125kHz
Accuracy TXO: ±3ppm Display: ±1.5ppm
Modulation Bandwidth W-FM: 180kHz N-FM: 12.5kHz AM/SSB: 2.4kHz
Step Range "AM/SSB: 2.5kHz Fixed
FM Multiple of 6.25kHz"
Span Range "AM/SSB: 400kHz Fixed
FM Multiple of 1MHz"
Frequency Selection Start, Stop, Center Span Setup
Amplitude
Measurement Range -20dBm to -100dBm
Average Noise Level -100dBm
Amplitude Units dBm, dBmV, dBuV
Reference Level Accuracy ±2dB
Reference Level Range +20dBm to -70dBm
Log Scale 10dB/DIV
Internal Atten 10dB
Sweep
Speed 500 to 2000msec
Trigger Source N-FM/ W-FM/ AM/ SSB
Trigger Mode Free Run, Single Run, Continous Wave, Squelch Run
Trigger Level TTL Level
Marker Modes Marker, Delta Marker
Memory
Trace Storage 50 Waves
Setup Storage 50 States
Display
Type Mono STN LCD
Resolution 192*192
LCD BackLight ON/OFF/AUTO
Mode Spectrum, Multi Bar
Input
RF Input Connector N Type Female, 50ohm
Maximum Input Power Max. +10dBm, 5V RMS
Frequency Counter
Range 9MHz to 2GHz
Resolution 7 Digits
Samping Time 1sec
Input Impedance 50ohm
Max. Input Voltage Max. 5Vrms
RF Input Connector BNC type, 50ohm
Data Memory 10 data
General Specification
Operation Temperature 0 to 40 deg.
Humidity 35RH to 85RH
Storage Temperature -10 to 50 deg.
Power
Power Source AA type Ni-MH
Power Adaptor SMPS DC 12V
Auto Power OFF/5/10/20/30Min
Dimension & Weight
Size 105(W)*220(H)* 45(D)
Weight 700g
Other
Other º
Antenna º
RS-232 Interface º
Mini Printer º

Features

  • Hand-Held and battery operated
  • 100kHz to 2060MHz measurement range
  • Built-in 2GHz frequency counter
  • Detects Wide band and Narrow band FM, AM and Single Sideband Signals
  • Phase lock loop for precise frequency tuning
  • RS-232 interface
  • Up to 160 channels may be scanned and displayed
  • Audio output with built-in speaker
  • Detachable antenna included
  • Back-lit display
  • All functions are menu selected
  • Instrument setups & display data may be stored in memory
  • Includes software and RS-232 Cable
  • Hard copy printer output of spectrum and bar graph displays
