PROSTAT PRS-801RM Surface Resistance System Kit (0.01 Ω ~ 2.00 x 1014 Ω)

Measuring Range0.01 Ω to 2.00 x 1014 Ω

Measurement ModesAuto, Manual, Auto-Manual, Continuous

Display6.9 cm x 4.8 cm (2.7” x 1.9")

6 digit - 7 segment color HTN display

Battery PowerRe-chargeable Li-Ion battery (included). Battery swappable through easily accessible battery door at the rear of the instrument

Battery ChargingRechargeable via USB 2.0 through PC port or Wall Charger (included)

Battery Charge IndicatorBattery has a status indicator on instrument screen

Battery Charging Time2 hours

Battery Life480 hours typical

50 hours (of continuous use)

Approximately 8,000 measurements

Memory Capacity999 data sets

Memory Data SetsData sets include resistance, test voltage, electrification period and timestamp.

Data DownloadCompatible with Connect 2.01

USBUSB 2.0 A to Micro-B

Operating Temperature10°C to 30°C (50°F to 80°F)

Operating Relative Humidity0% – 85%, non-condensing

Operating Altitude2000 m

Storage Temperature-30°C to +60°C (-22 °F to +140 °F)

Dimensions (WxHxD)117 mm x 188.5 mm x 48 mm

4.59 in x 7.42 in x 1.90 in

Weight510 g (1.12 lb)

Case MaterialPolycarbonate with Rubber Side Grips

ColorBlack

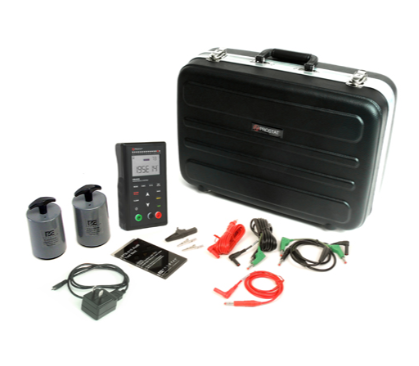

Included:

PRS-801B Resistance Meter

801B-012 Li-ion Bbattery Pack

800LB 10 foot Silicone Test Lead - Black

800LR 10 foot Silicone Test Lead - Red

800PSL Premium Shielded Test Lead

800TVL High Resistance Voltage Test Lead

PAS-853S Test Lead Shunt

PTB-915 Audit Test Bed

800B-001 AC/DC Power Supply

800B-002 Micro USB Cable

RS-801BC Bulldog Clip

PSI-870MAC Metal Clip (2)

Connect 2.0 PC Utility Software

PRS-801W 5 lbs Conductive Rubber Electrodes (2)

PMK-151C Carrying Case
