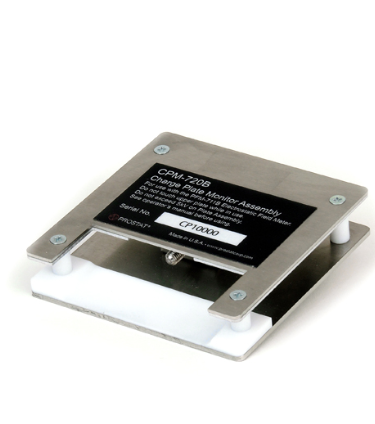

PROSTAT CPM-720B Charge Plate Monitor Assembly

Tolerance: Matches the PFM-711B Field Meter within 5% when calibrated together

Capacitance: 19 Picofarads (pF) ±1 pF when mounted to the PFM-711B

Range: 0 to ±5 kV ±2%

Grounding

Case: Through conductive case and snap fastener of PFM-711B Field Meter

Environment

Operating Temperature: 10°C to 30°C (50°F to 80°F)

Operating Relative Humidity: 0% – 70%, non-condensing

Operating Altitude: 2000 m

Physical Specifications

Without the Banana Input Jack: 8.25 cm L x 8.25 cm W x 1.75 cm H

With the Banana Input Jack: 8.25 cm L x 8.25 cm W x 2.29 cm H

Weight: 187 g (6.6 oz.)
